Tern HSD SOO (+$15 Call2Recycle Battery Fee)

Tern HSD SOO (+$15 Call2Recycle Battery Fee)
$5,499.00
Color: Dark Blue
Please select options Unavailable
This item may not be shipped, however it can be purchased online and picked up in-store at your convenience.

Details

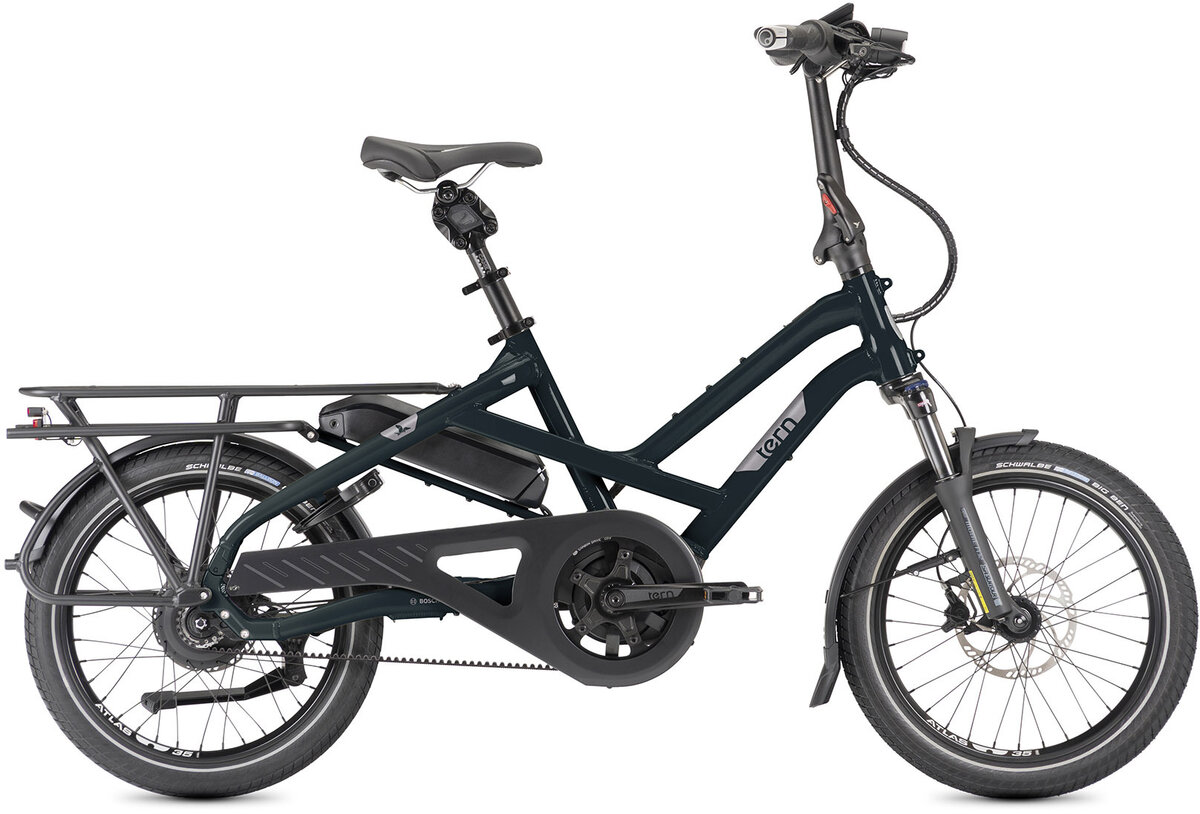

Compact Bosch e-cargo bike that's easy to ride and handle.

What makes it an S00?
-Bosch Performance Line motor with Bosch Smart System provides up to 75 Nm of torque and increases your pedaling power by up to 340%
-Bosch ConnectModule—for the Smart System’s enhanced theft-protection functions like eBike Alarm and eBikeTracking
-Kiox 300 color display that automatically activates eBike Lock when removed from the bike
-Silent, smooth, and virtually maintenance-free Gates CDX Belt Drive
-Enviolo Heavy Duty internally geared hub with 380% gear ratio range and twist shifter
-Ultra-bright Ignis Headlight with high/low beam ensures 24/7 visibility, no matter the weather
-Always-on RearStop Brake Light helps you safely signal stops

HSD Highlights
-Control all Smart System functions at your fingertips via the Bosch eBike Flow App: keep your e-bike system up-to-date with over-the-air updates, activate the eBike Lock, customize riding -modes, view bike information, connect to dealers, and more!
-Bosch PowerPack 545 battery provides long range of up to 121 km (76 mi)
-Cargo and passenger-ready: large rear rack capacity of 80 kg (176 lb) means you can carry one infant to a medium-sized adult passenger, or lots of cargo
-Fits riders 150 - 195 cm (4’11” - 6’5”) with an easily-adjustable cockpit
-Tested for safety and reliability: frame and fork are EFBE-tested up to the 180 kg (397 lb) Maximum Gross Vehicle Weight

Specs

Frame Tern HSD, 6061-AL, patented design, Tern sliding dropouts, EFBE Tri-Test approved: 180 kg
Fork Suntour custom for Tern, 1.5" tapered Chromoly steerer, 32 mm stanchions, Thru-axle, 70 mm travel, EFBE approved: 180 kg
Headset Tern Flux Pro Taper by FSA, 1.5", angular contact bearings, Physis integrated
Rims/Wheels Tern Atlas H, wide 35 mm
Hubs Front Hub: Novatec, Thru-axle, sealed bearings, Rear Hub: Enviolo Heavy Duty, 380% continuously variable range
Spokes Stainless steel, double-butted
Tires Schwalbe Big Ben, 55-406, RaceGuard puncture protection, ECE-R75 ebike certification
Crankset Tern HSD custom, Gates CDX CNC machined beltring
Bottom Bracket Motor integrated
Chain Gates Carbon Drive CDX belt
Rear Cogs Gates CDX, precision CNC machined cog
Shifters Enviolo, Twist
Handlebars Tern Physis 3D, 3D forged, 5 patented technologies, 12°, 290 mm
Tape/Grips Ergon
Stem Tern Andros, adjustable, forged construction, patented technology
Brake Levers Magura MT4 e-stop, hydraulic, with brake light sensor
Brakes Front: Magura MT4, hydraulic disc, 180 mm rotor Rear:Magura MT4, hydraulic disc, 160 mm rotor
Pedals Urban with non-slip surface, sealed bearings
Saddle Tern Upright by Velo
Seat Post Cane Creek Thudbuster G4, Tern Telescope, 34.9/30.9 mm
Seat Binder Tern Collar
Accessories & Extras Bell, Ursus rear mount kickstand, SKS fenders, Atlas H Rack, ABUS frame lock keyed-alike with Bosch Battery
Motor Bosch Performance, 340% Assist, 75 Nm Torque, max speed 25 kph (EU); max speed 20 mph (US)
Battery Bosch PowerPack 545
Display Bosch Kiox 300 w/ LED remote, 4 mode selectable, walk assist, connectivity with Bosch eBike Flow app, electronic bike lock
Lock & Alarm Bosch Connect Module with GPS/GSM connectivity & anti-theft alarm when subscribed to Flow+; free 12-month trial upon activation
Charger 220V, 4A (EU); 100-240V, 4A (US)
Range 545 Wh: 51-121 km (32-76 mi)
Front Light Ignis Headlight, Ultra wide 700 lumens, Hi/Lo Beam
Rear Light RearStop Brake Light, Always on

* Subject to change without notice.

Part Numbers

Option MPN Store SKU
Dark Blue 12-91-87 210000105500
