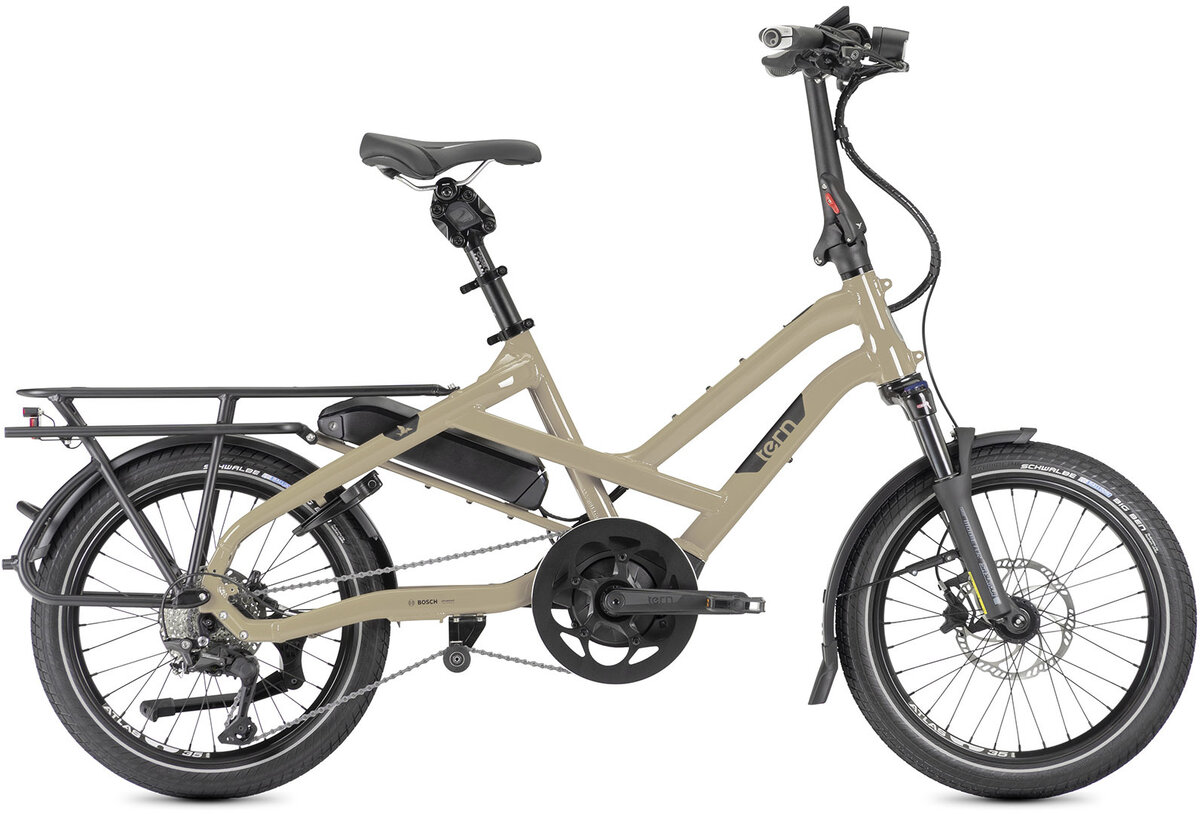

Tern HSD S11 (+$15 Call2Recycle Battery Fee)

Tern HSD S11 (+$15 Call2Recycle Battery Fee)
$4,899.00
Color:
Dune
Please select options Unavailable
This item may not be shipped, however it can be purchased online and picked up in-store at your convenience.

Details

Compact easy-handling Bosch e-cargo bike that's ready for serious hauls.

What makes it an S11?
-Class 3 Bosch Performance Line Sport motor with Bosch Smart System provides up to 75 Nm of torque and increases your pedaling power by up to 340%
-Bosch ConnectModule—for the Smart System’s enhanced theft-protection functions like eBike Alarm and eBikeTracking
-Kiox 300 color display that automatically activates eBike Lock when removed from the bike
-1x11-speed Shimano Deore groupset
-Ultra-bright Ignis Headlight with high/low beam ensures 24/7 visibility, no matter the weather
-Always-on RearStop Brake Light helps you safely signal stops

HSD Highlights
-Control all Smart System functions at your fingertips via the Bosch eBike Flow App: keep your e-bike system up-to-date with over-the-air updates, activate the eBike Lock, customize riding modes, view bike information, connect to dealers, and more!
-Bosch PowerPack 545 battery provides long range of up to 121 km (76 mi)
-Cargo and passenger-ready: large rear rack capacity of 80 kg (176 lb) means you can carry one infant to a medium-sized adult passenger, or lots of cargo
-Fits riders 150 - 195 cm (4’11” - 6’5”) with an easily-adjustable cockpit
-Tested for safety and reliability: frame and fork are EFBE-tested up to the 180 kg (397 lb) Maximum Gross Vehicle Weight

Specs

Frame Tern HSD, 6061-AL, patented design, Tern sliding dropouts, EFBE Tri-Test approved: 180 kg
Fork Suntour custom for Tern, 1.5" tapered Chromoly steerer, 32 mm stanchions, Thru-axle, 70 mm travel, EFBE approved: 180 kg
Headset Tern Flux Pro Taper by FSA, 1.5", angular contact bearings, Physis integrated
Rims/Wheels Tern Atlas H, wide 35 mm
Hubs Front Hub: Novatec, Thru-axle, sealed bearings, Rear Hub: Novatec, sealed cartridge bearing, disc
Spokes Stainless steel, double-butted
Tires Schwalbe Big Ben, 55-406, RaceGuard puncture protection, ECE-R75 ebike certification
Crankset Tern HSD custom
Bottom Bracket Motor integrated
Chain KMC 11 spd, for eBike, EPT corrosion resistant coating
Rear Derailleur Shimano Deore Shadow+
Rear Cogs 11-36T, 11 spd
Shifters Shimano Deore, 1 x 11 spd
Handlebars Tern Physis 3D, 3D forged, 5 patented technologies, 12°, 290 mm
Tape/Grips Ergon
Stem Tern Andros, adjustable, forged construction, patented technology
Brake Levers Magura MT4 e-stop, hydraulic, with brake light sensor
Brakes Front Brake: Magura MT4, hydraulic disc, 180 mm rotor Rear Brake: Magura MT4, hydraulic disc, 160 mm rotor
Pedals Urban with non-slip surface, sealed bearings
Saddle Tern Upright by Velo
Seat Post Cane Creek Thudbuster G4, Tern Telescope, 34.9/30.9 mm
Seat Binder Tern Collar
Accessories & Extras Bell, Ursus rear mount kickstand, SKS fenders, Atlas H Rack, ABUS frame lock keyed-alike with Bosch Battery
Motor Bosch Performance Sport, 340% Assist, 75 Nm Torque, Class 3 max speed 28 mph
Battery Bosch PowerPack 545
Display Bosch Kiox 300 w/ LED remote, 4 mode selectable, walk assist, connectivity with Bosch eBike Flow app, electronic bike lock
Lock & Alarm Bosch Connect Module, GPS/GSM connectivity; 1 year free cell connectivity, Anti-theft alarm
Range 545 Wh: 51-121 km (32-76 mi)
Charger 100-240V, 4A (US)
Front Light Ignis Headlight, Ultra wide 700 lumens, Hi/Lo Beam
Rear Light RearStop Brake Light, Always on

* Subject to change without notice.

Part Numbers

Option MPN Store SKU
Dune 12-91-85 210000105498
