Tern HSD P10 (+$15 Call2Recycle Battery Fee)

Tern HSD P10 (+$15 Call2Recycle Battery Fee)

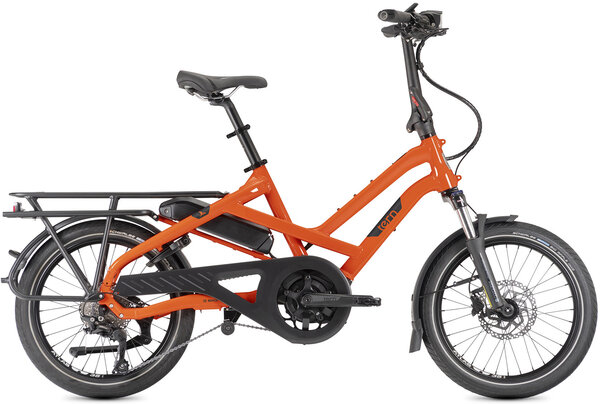

  • Color: Orange

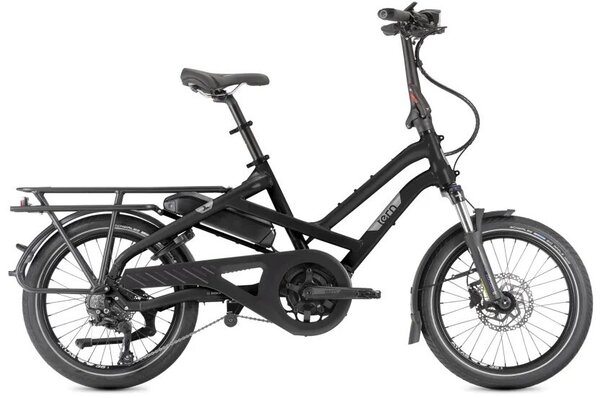

  • Color: Satin Black
$4,299.00
Please select options Unavailable
This item may not be shipped, however it can be purchased online and picked up in-store at your convenience.

Details

Most Affordable Smart HSD

The HSD P10 is an easy-to-ride, compact e-cargo bike featuring a hefty carrying capacity. Comes with the Bosch Smart System to help you do more by bike.

Control all Smart System functions at your fingertips via the Bosch eBike Flow App: keep your e-bike system up-to-date with over-the-air updates, activate the eBike Lock, customize riding modes, view bike information, connect to dealers, and more!
Bosch PowerPack 545 battery provides long range of up to 121 km (76 mi)
Cargo and passenger-ready: large rear rack capacity of 80 kg (176 lb) means you can carry one infant to a medium-sized adult passenger, or lots of cargo
Fits riders 150 - 195 cm (4’11” - 6’5”) with an easily-adjustable cockpit
Tested for safety and reliability: frame and fork are EFBE-tested up to the 180 kg (397 lb) Maximum Gross Vehicle Weight

Specs

Frame Tern HSD, 6061-AL, patented design, Tern sliding dropouts, EFBE Tri-Test approved: 180 kg
Fork Suntour custom for Tern, 1.5" tapered Chromoly steerer, 32 mm stanchions, Thru-axle, 70 mm travel, EFBE approved: 180 kg
Headset Tern Flux Pro Taper by FSA, 1.5", angular contact bearings, Physis integrated
Rims/Wheels Tern Atlas H, cargo wheel, wide 35 mm
Hubs Novatec, Thru-axle, sealed bearings (front), Novatec, sealed cartridge bearing, disc (rear)
Spokes Stainless steel
Tires Schwalbe Big Apple, 55-406, puncture protection, Reflex
Crankset Tern HSD custom
Bottom Bracket Motor integrated
Chain KMC 10 spd, for eBike, EPT corrosion resistant coating
Rear Derailleur Shimano Deore Shadow+
Rear Cogs Shimano 11-36T, 10 spd
Shifters Shimano Deore, 1 x 10 spd, trigger
Handlebars Tern Physis 3D, 3D forged, 5 patented technologies, 12°, 290 mm
Tape/Grips Ergon
Stem Tern Andros, adjustable, forged construction, patented technology
Brake Levers Tektro, hydraulic disc
Brakes Tektro, hydraulic disc, 180 mm rotor (front), Tektro, hydraulic disc, 160 mm rotor (rear)
Pedals Urban with non-slip surface
Saddle Tern Upright by Velo
Seat Post Tern Telescope, 34.9/30.9 mm, 2014-AL
Seat Binder Tern Collar
Accessories & Extras Bell, Ursus rear mount kickstand, SKS fenders, Atlas H Rack, ABUS frame lock keyed-alike with Bosch Battery
Motor Bosch Performance, 340% Assist, 75 Nm Torque, Class 1 max speed 20 mph
Battery Bosch PowerPack 545
Display Bosch Intuvia 100 w/ LED remote, 4 mode selectable, walk assist, connectivity with Bosch eBike Flow app, electronic bike lock
Range 545 Wh: 51-121 km (32-76 mi)
Charger 220V, 4A (EU); 100-240V, 4A (US)
Front Light Tern Valo Direct, 190 lumens
Rear Light Herrmans H-Trace, for eBike

* Subject to change without notice.

Part Numbers

Option MPN Store SKU
Orange 12-91-81 210000105492
Satin Black 12-91-80 210000105490
