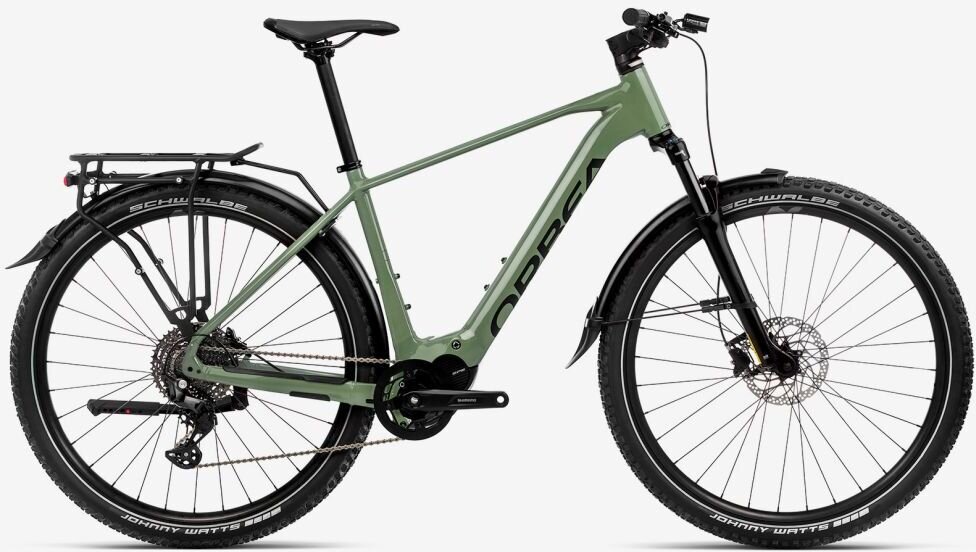

Orbea Kemen SUV 40 Class 3 (+$15 Call2Recycle Battery Fee)

Orbea Kemen SUV 40 Class 3 (+$15 Call2Recycle Battery Fee)
  • Color: Urban Green
  • Color: Mango
  • Color: Night Black
Please select options Unavailable


Escape the everyday

The best tools are ones you use daily – the perfect bike is one that fits seamlessly with your many needs. Tireless, capacious and effortless, Kemen goes beyond simple utility by turning ebike rides into delightful mini-adventures. Whizz through the morning traffic, breath fresh air on your way to work, let Kemen take the strain so you don´t break a sweat. After work take the long way home, escape the bike lane and have an urban adventure.

Kemen SUV is prepared for your busy schedule with bigger tires with more aggressive tread and strong carrier (can take a child seat) for heavy loads and rough roads.


Frame Orbea Kemen Top Bar, Shimano Steps, Integrated battery, Hydroformed Alloy 6061 series Internal Cable Routing, Boost 148x12, carrier and kickstand compatible
Fork SR Suntour X1 Coil LO 100mm QR
Headset FSA 1-1/2" Integrated Aluminium Cup
Rims/Wheels Alloy, Tubeless, 29", 29c, 32H
Tires Schwalbe Johnny Watts, 29x2.35 RaceGuard Reflective Tape
Crankset FSA Steel Megatooth 44t w/chainguard
Chain KMC eGlide
Rear Derailleur Shimano Deore M5130 Link Glide GS Shadow Plus
Rear Cogs Shimano CS-LG400 11-43t 10-Speed
Shifters Shimano Deore M5130 Link Glide
Handlebars OC Mountain Control MC31, Rise20, Width 800
Stem Alloy forged, 35mm interface, -6º, ICR
Brakes Shimano MT200 Hydraulic Disc
Pedals VP-537 Black
Saddle Selle Royal Vivo 145x269mm
Seat Post Alloy, 31.6mm, Setback 0
Accessories & Extras Mudguard: CURANA Apollo 70mm, Rear Rack: Orbea Kemen Suv oversize Alloy Rear Carrier, w/Mik HD and Oertlieb QL3.1 system
Motor Shimano EP600
Battery Orbea Internal 540Wh (Optional 250 Wh Range Extender)
Display Shimano EN500
Charger Orbea 2.Generation eBike Smart charger 42V/2-4A
Front LIght Lezyne Ebike POWER STVZO PRO E115 with remote 310 lumens
Rear Light Lezyne Super Bright CARRIER STVZO Alert Technology 12Lumen

* Subject to change without notice.

Part Numbers

Option UPC Store SKU
Urban Green / Medium 8434446306020 210000103450
Mango / Small 8434446306006 210000103454
Night Black / Large 8434446306075 210000103372
