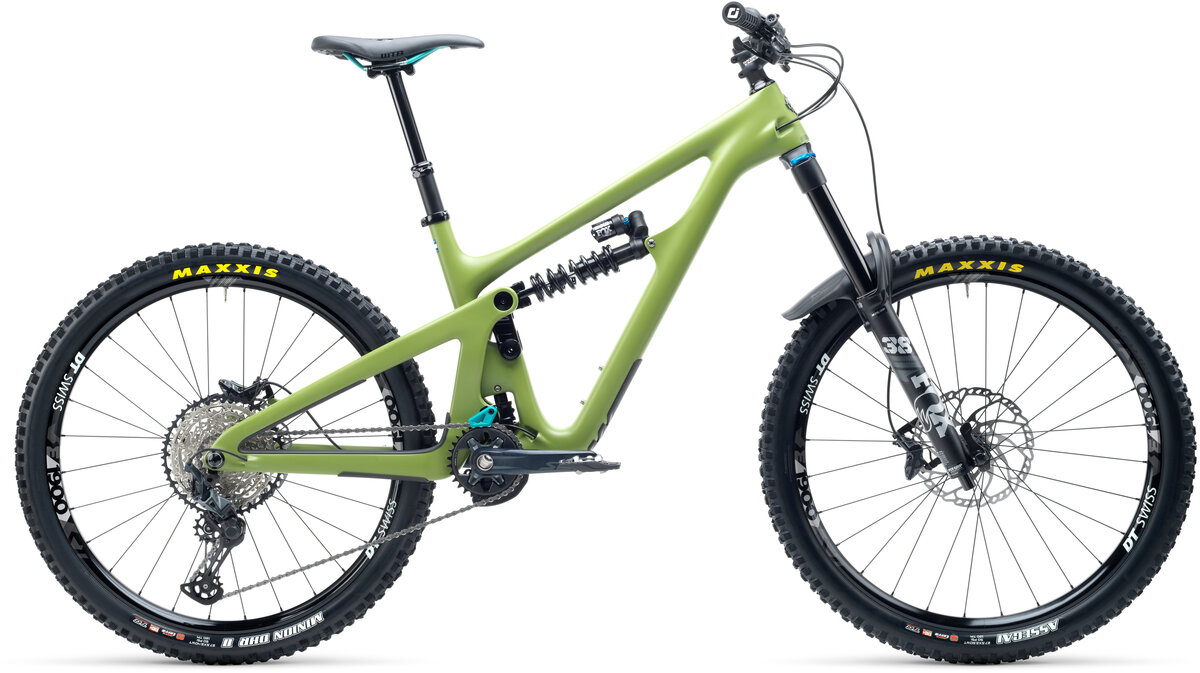

Yeti Cycles SB165 C1

Yeti Cycles SB165 C1
$5,524.99
$6,500.00
Color: Moss
Size: Select size
Options: Fox Performance Suspension
Please select options Unavailable
This item may not be shipped, however it can be purchased online and picked up in-store at your convenience.

Details

Master of the gnarniverse. Bold claim for some. Fact-checked humility for the SB165. At home outside the tape, beyond the norm. Taken on the trails nobody talks about. Trusted on the lines where mistakes can't happen. Comfortable with all the chaos. Pleased when you're puckered. Fearless of your fear.

Geometry Chart:
SIZESMALLMEDIUMLARGEX-LARGE
A SEAT TUBE LENGTH (mm) 380 410 450 495
B TOPTUBE LENGTH (mm) 567 598.5 621.5 649.4
C HEADTUBE ANGLE 63.5 63.5 63.5 63.5
D EFF. SEAT TUBE ANGLE 77 77 77 77
E CHAINSTAY LENGTH (mm) 433 433 433 433
F WHEELBASE (mm) 1197.7 1230.2 1255.2 1285.2
G ESTIMATED BB HEIGHT (mm) 344.9 344.9 344.9 344.9
H STANDOVER (mm) 710.4 716.3 723.4 746.7
I HEADTUBE LENGTH (mm) 104.8 110.4 121.6 132.8
J AXLE TO CROWN (mm) 569.1 569.1 569.1 569.1
K OFFSET (mm) 37.5 37.5 37.5 37.5
L STACK (mm) 594.9 599.9 609.9 619.9
M REACH (mm) 430.1 460.1 480.1 505.1
N FRONT CENTER (mm) 764.7 797.2 822.2 852.2
Sizes:
Small 155 cm - 170 cm
Medium 165 cm - 180 cm
Large 178 cm - 191 cm
X-Large 185 cm - 201 cm

Specs

Frame C/Series carbon fiber frame, Switch Infinity suspension technology, press-fit BB92, internally tunneled cable routing, 148mm x 12mm BOOST dropouts, sealed enduro max pivot bearings, integrated derailleur hanger, and axle.
Fork Select from dropdown above
Rear Shock Select from dropdown above
Wheels DT SWISS E1900 30MM
Tires Front: MAXXIS ASSEGAI 2.5 EXO+
Rear: MAXXIS MINION DHR II 2.4 EXO+
Bottom Bracket SHIMANO XT BB92
Crankset SHIMANO SLX 30T 170MM
Shifters SHIMANO SLX
Rear Derailleur SHIMANO SLX
Cassette/Freewheel SHIMANO SLX 10-51
Chain SHIMANO SLX
Brakes SHIMANO DEORE 4 PISTON
Rotors SHIMANO 203/SHIMANO 203
Handlebars RACE FACE AEFFECT R 35X780MM
Tape/Grips ODI ELITE PRO
Stem RACE FACE RIDE 35X50MM
Headset CANE CREEK 40 INTEGRATED
Seatpost FOX TRANSFER 31.6MM / SM: 125MM, MD: 150MM, LG/XL: 175MM
Saddle SILVERADO CUSTOM

* Subject to change without notice.

Part Numbers

Option MPN Store SKU
Moss / Fox Performance Suspension / Medium B22165CMDPMOPHC018800 210000080232
Moss / Fox Performance Suspension / Large B22165CLGPMOPHC018800 210000080233
