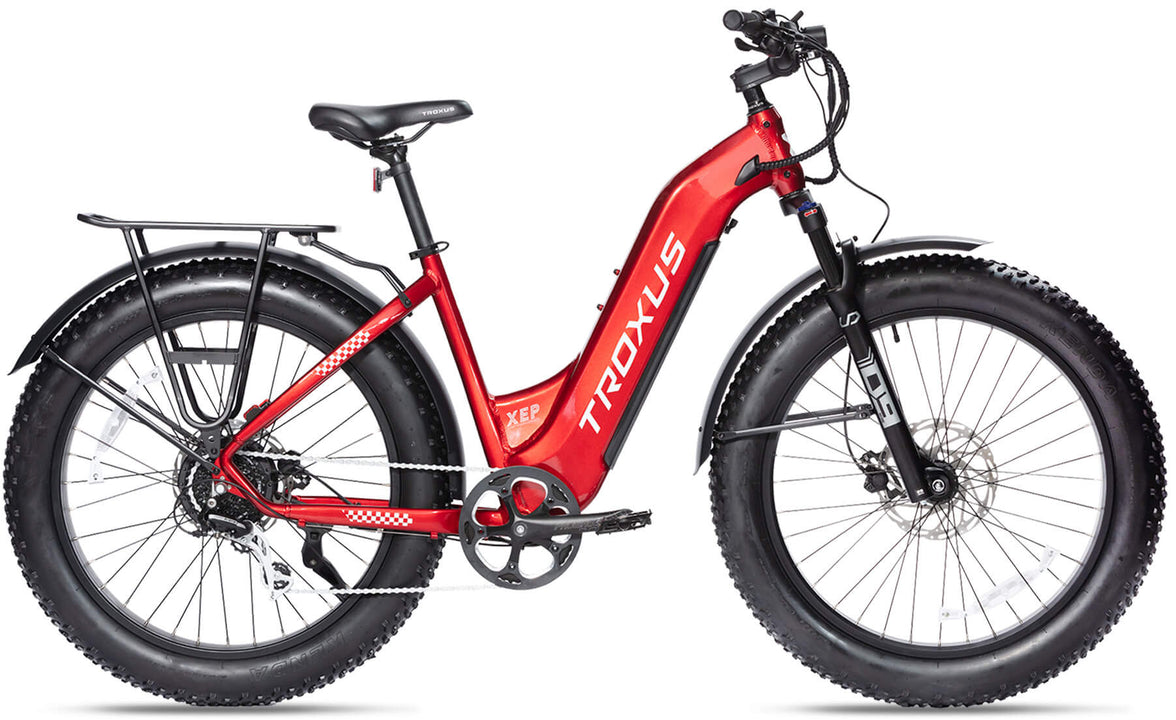

Troxus Explorer Step-Thru (+$15 Call2Recycle Battery Fee)
$1,650.00
$1,799.00
Details
Life is meant to be explored. Troxus Explorer series e-bikes equipped with durable fat tires and a sturdy aluminum alloy frame provide more stability and traction over rough terrain like snow, sand, and mud. And with the 48V 20A high-power SAMSUNG battery, Explorer has enough power to ride and explore further.
Standard Weight Limit 275LB
Maximum Weight Limit 353LB
| Frame Size | Standard (mm) |
|---|---|
| Wheel size | 26"*4.0 |
| Seat tube | 480 |
| Seat tube angle | 71.0° |
| Head tube length | 140 |
| Head angle | 69° |
| Effective top tube | 595 |
| Bottom bracket height | 296 |
| Bottom bracket drop | 70 |
| Chainstay length | 490 |
| Offset | 46 |
| Wheelbase | 1159.3 |
| Frame Reach | 395 |
| Frame Stack | 625.2 |
Specs
| Frame | 6061 Aluminium alloy |
|---|---|
| Fork | Aluminum Alloy, Suspension Fork |
| Rims |
Front: Single Wall Aluminum 36h Rear: Double Wall Aluminum 36h |
| Hubs | Nutted Front and Rear |
| Spokes |
Front wheel: black stainless 13 Gauge Rear wheel: black stainless 12 Gauge |
| Tires | 26" x 4.0" Tires |
| Bottom Bracket | Square Taper, Sealed |
| Crankset | 170mm w/46T |
| Shifters | 8 Speed |
| Rear Derailleur | Shimano 8 Speed |
| Cassette/Freewheel | 12-32T, 8 Speed Cassette |
| Chain | KMC Z8.3 |
| Brakes | Tektro Hydraulic disc brake, 180mm Rotors |
| Handlebars | Aluminum 31.8mm, 700mm |
| Tape/Grips | Ergonomic Comfort |
| Stem | Threadless, 28.6mm, 7 Degree Rise |
| Headset | GINEYEA Sealed Bearing Headset |
| Seatpost | Forged Alloy, 30.9*350mm, 2 Bolt Clamp |
| Saddle | Troxus |
| Pedals | 9/16'' Alloy Platform |
| Motor | Bafang 48V 750W Hub motor |
| Battery | Removable Internal Lithium-ion 48V, 20Ah (960Wh)with Samsung cells |
| Controller/Display | L401 LCD |
| Charger | 54.6V 3A |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Red / Medium / 26-inch | 850063567121 | 10870100009 | 210000110854 |
