Tern Vektron Q9 (+$15 Call2Recycle Battery Fee)
Details
Shop Tern Cargo Accessories
The Accelerator!

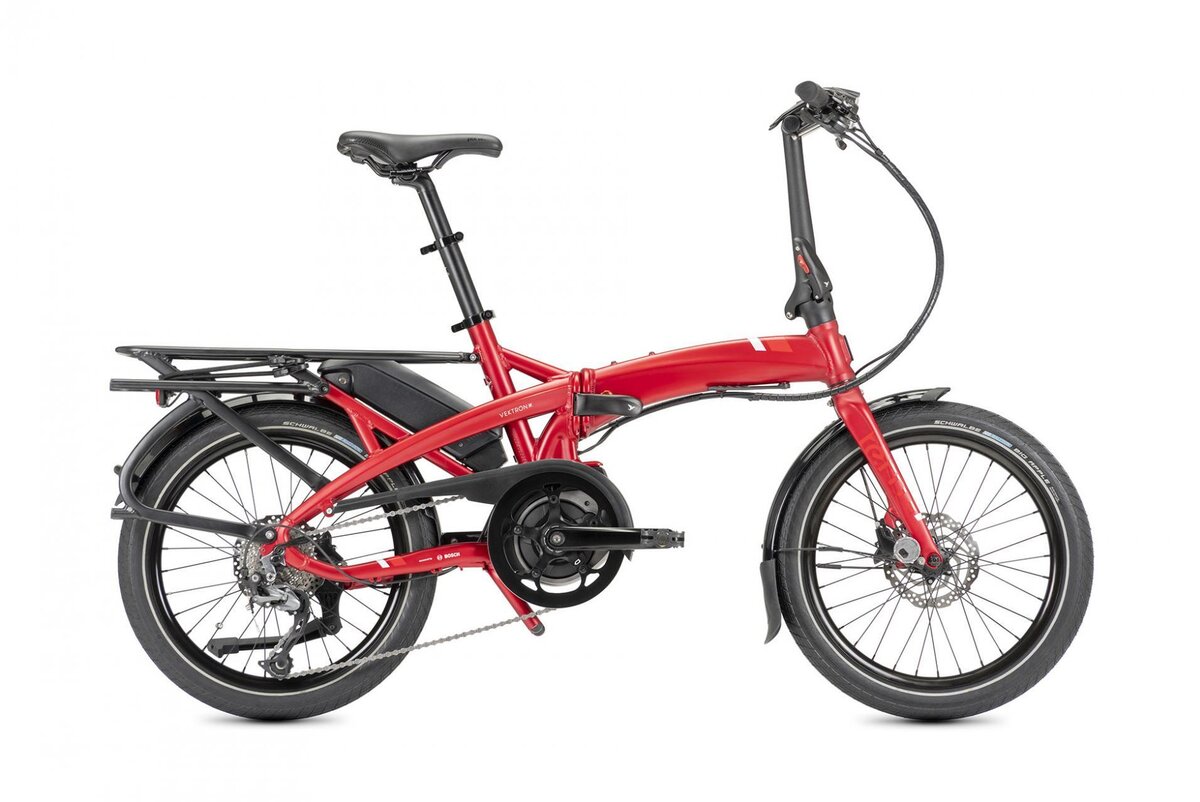

The new Tern Vektron Q9 features hydraulic disc brakes for all-weather stopping power and an updated frame with a reclining battery for a lower center of gravity and better ride. The Vektron Q9 has also been upgraded to the Bosch Active Line Plus electric drivetrain for 270% more assistance and 50 NM of torque. Other features include:
- The frame which passes strict European safety standards for pedal-assist e-bikes, having been certified as EN15194-compliant by EFBE Prüftechnik
- Integrated Atlas V Rack™ works seamlessly with Thule Yepp Maxi and Dash® RM child seats—no adapters needed
- The ability to resize in seconds to fit riders 147 – 195 cm (4’10” – 6’5”) so a single bike can be shared by the family
Specs
| Frame | Tern Vektron, hydroformed 7005-AL, OCL+ joint, 3 patented technologies |
|---|---|
| Fork | Tern Tarsus, 6061-Al, hydroformed |
| Headset | Tern Flux, cartridge bearings, Physis integrated |
| Rims/Wheels | Kinetix Comp, for disc |
| Tires | Schwalbe Big Apple, 55-406, puncture protection, Reflex |
| Crankset | Vektron custom, forged 6061-AL crankarm |
| Bottom Bracket | Motor integrated |
| Chain | 9 spd, DHT for eBike, GST corrosion resistant coating |
| Rear Derailleur | Shimano Alivio Shadow |
| Rear Cogs | Shimano 11-32T, 9 spd |
| Shifters | Shimano Alivio, 1 x 9 spd, trigger |
| Handlebars | Flat bar, 6061-AL, Tern Andros adapted |
| Tape/Grips | Velo ergonomic, lock-on |
| Stem | Tern Andros, adjustable, forged construction, patented technology |
| Brakes | Shimano, hydraulic disc |
| Saddle | Tern Porter, patented GripPad design |
| Seat Post | Tern Telescope, 34.9/30.9 mm, 2014-AL |
| Accessories & Extras | SKS Chainblade, URSUS, rear mount kickstand, Tern Valo Direct, 190 lumens (front light), Herrmans H-Trace, for eBike (rear light), SplashGuard fenders, Atlas V Rack™, integrated 8 point mounting; Max load weight: 27 kg (60 lb) |
* Subject to change without notice.
