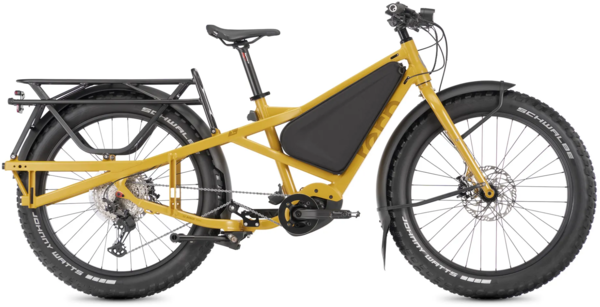

Tern Orox S12 (+$15 Call2Recycle Battery Fee)

Tern Orox S12 (+$15 Call2Recycle Battery Fee)
  • Color: Highland Yellow
$5,999.00
$6,499.00
Color: Highland Yellow
Size: Large
Wheel Size: 27.5-Inch
Please select options Unavailable
This item may not be shipped, however it can be purchased online and picked up in-store at your convenience.

Details

What makes it an S12?
- Shimano Deore XT 1 x 12-speed groupset for fast and precise shifting
- 27.5" stud-compatible Vee Snowball tires take on even the toughest conditions

Orox highlights
- Hill-attacking Bosch Performance Line CX motor provides up to 85 Nm of torque and 340% support
- Dual-battery system draws from up to two batteries for ultra-long range
- Bosch Smart System with ConnectModule lets you access and control advanced functions like eBike Alarm and eBike Tracking
- Splash and dust-proof Kiox 300 color display with LED remote for intuitive control
- Powerful and responsive Magura 4-piston hydraulic brakes
- EFBE-certified safe and reliable for massive hauls, with a Max Gross Vehicle Weight of 210 kg (462 lb) on pavement and 180 kg (397 lb) off-road
- Two frame sizes to fit riders 155 - 195 cm (5’1” - 6’5”) tall, weighing up to 130 kg (286 lb)

Specs

Frame Tern Orox, 6061-AL, patented design, EFBE tested and approved
Fork Atlas X, butted chromoly steel, EFBE tested and approved
Wheels Tern Atlas X, ultra-heavy duty cargo construction, 27.5"
Rims Tern Atlas X, custom doublewall construction
Hubs Front: Tern Atlas X, CNC body, disc cooling fins, Boost Thru-Axle, integrated Tern Tool with 5mm hex/T20 Torx
Rear: Tern Atlas X, CNC body, disc cooling fins, Boost Thru-Axle, Syntace X-12 standard
Tires Vee Snow Ball, 27.5 x 4"
Shifters Shimano Deore, 1 x 12 spd
Rear Derailleur Shimano Deore XT Shadow+
Brakes Magura MT5, 4-piston hydraulic disc, 203 mm rotor
Brake Levers Magura MT5, hydraulic
Handlebars Level Nine, AL-7050, 800 mm, riser, eMTB approved
Stem Level Nine, 45 mm (M), 65 mm (L), Syntace VR-3 certified
Headset FSA, 1.5", angular contact bearings
Seatpost Syntace P6 AL7050, 34.9 mm, Syntace VR-3 SP-approved
Saddle Ergon SM, E-Mountain Sport, CrMo Rail
Pedals MTB, non-slip
Motor Bosch Performance CX, max speed 20 mph (US)
Battery 725 Wh, Bosch Dual Battery pack ready
Controller/Display Bosch Kiox 300 w/ LED remote, electronic bike lock
Charger 100-240V, 4A (US)

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Highland Yellow / Large / 27.5-Inch 810067161923 18-9-04 210000113787
