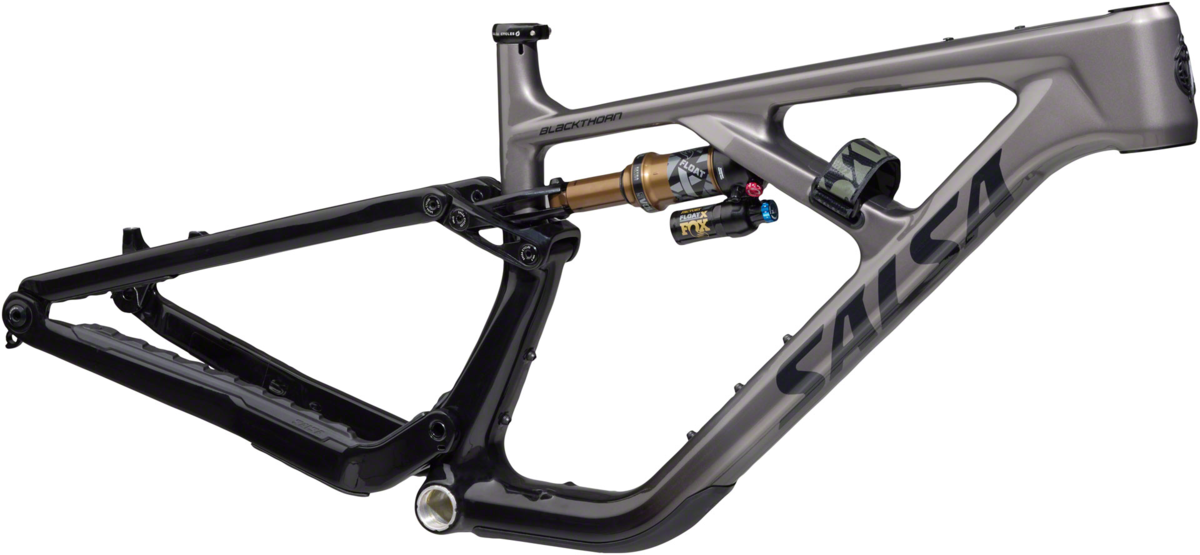

Salsa Salsa Blackthorn 145 C Frame

Salsa Salsa Blackthorn 145 C Frame
  • Color: Black/Smoke
$3,199.00
Color: Black/Smoke
Size: Select size
Wheel Size: 29-inch
Please select options Unavailable
This item may not be shipped, however it can be purchased online and picked up in-store at your convenience.

Details

The Blackthorn 145 C frameset is your canvas for a dreamy all-mountain rig. The stiff carbon fiber frame improves your power transfer on flats and climbs, aided by 145mm of Split Pivot rear suspension travel with a supple yet supportive ride with superb pedaling efficiency, well-suited to the huge variety of trails you’ll be tackling. Our all-mountain geometry puts you in a confident position for descents and a comfortable position for the pedaly parts of the trail.

On-bike cargo mounts let you configure your setup with space for two bottles and your repair kit, plus snacks and more via the top tube mounts. Blackthorn carbon all-mountain frame give you plenty to build on — just add your favorite parts and go make an epic day of it.

Sizes:
SizeSmallMediumLargeX-Large
Effective Top Tube (mm) 589- 590 611- 612 633- 634 655- 656
Stand Over (mm) 746- 743 746- 743 747- 743 747- 743
Reach (mm) 452- 449 472- 469 492- 489 512- 509
Stack (mm) 612- 615 621- 624 630- 633 639- 642
Total Seat Tube Length (mm) 405 430 455 480
Headtube Length (mm) 100 110 120 130
Headtube Angle (°) 63.9-63.6 63.9-63.6 63.9-63.6 63.9-63.6
Seat Tube Angle (°) 77.4-77.1 77.4-77.1 77.4-77.1 77.4-77.1
BB Drop (mm) 25- 30 25- 30 25- 30 25- 30
BB Height (mm) 351- 346 351- 346 351- 346 351- 346
Chainstay Length (mm) 432- 433 432- 433 432- 433 432- 433
Fork Length Axle to Crown (mm) 571 571 571 571
Fork Offset (mm) 43 43 43 43
Wheelbase (mm) 1219- 1220 1243- 1244 1268- 1269 1292- 1293
Crank Arm Length (mm) 165 165 170 170
Handlebar Width (mm) 760 800 800 800
Stem Length (mm) 40 40 40 40

Measurements based on:

  • an unsprung bike (no sag)
  • a 29 x 2.5" tire measuring 752mm in diameter
  • Standover is measured from vertically from ground to top of top tube 50mm forward of bottom bracket center
  • Note: Where two measurements are listed, the first number is with Flip Chip in default High position; the second number is with Flip Chip in Low position
Sizes:
SizeSmallMediumLargeX-Large
Recommended Rider Height (in) 61.81 - 66.93 66.14 - 70.87 70.08 - 75.2 74.02 - 79.13

WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Specs

Frame Blackthorn 145 Carbon
Rear Shock Fox Float X Factory, 210 x 55mm
Headset FSA Orbit 1.5E ZS NO.57E

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Black/Smoke / Small / 29-inch 657993411438 FM0394 210000123151
Black/Smoke / Medium / 29-inch 657993411452 FM0395 210000123152
Black/Smoke / Large / 29-inch 657993411476 FM0396 210000123153
Black/Smoke / X-Large / 29-inch 657993411490 FM0397 210000123154
