Details

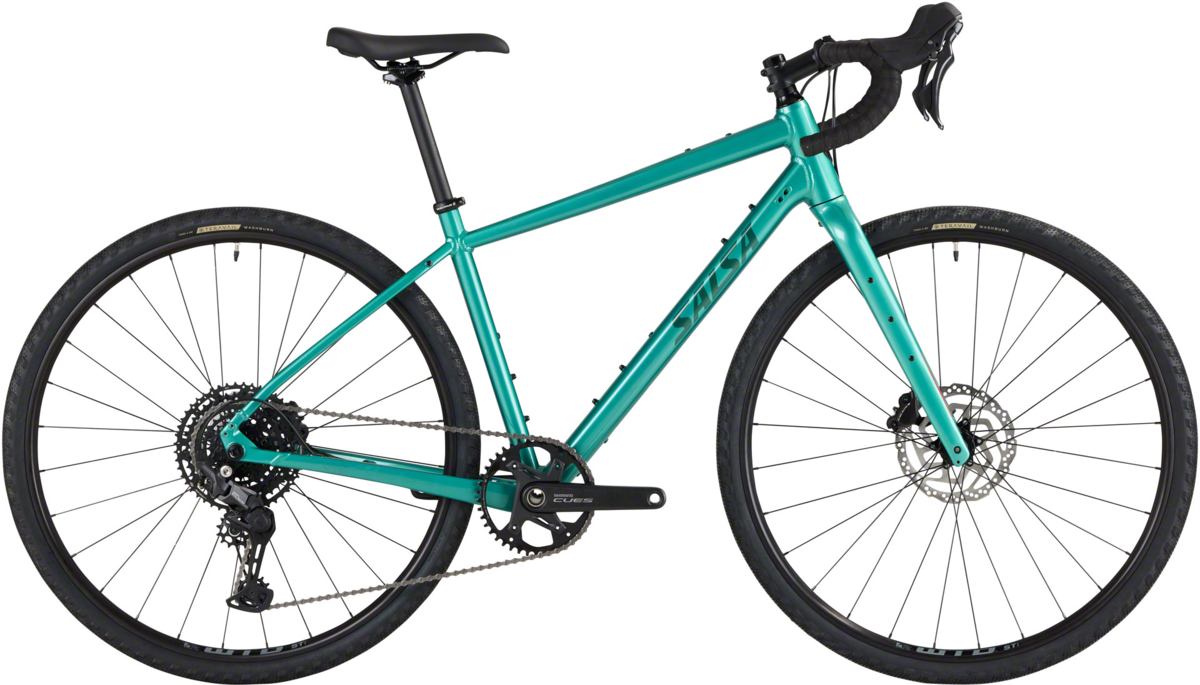

Journeyer is Salsa’s workhorse road and gravel adventure machine. This versatile platform is a gateway to gravel riding. The confidence of its redesigned aluminum frame and carbon fork attracts mixed-surface riders, while its cargo capacity appeals to bikepackers. Journeyer’s fender mounts, rack mounts, wheel size compatibility, and handlebar options suit riders seeking a do-it-all bike.
- 6061-T6 alloy frame
- Salsa Waxwing carbon fork with aluminum steerer - includes fender mounts, Three-Pack mounts, mid-blade rack mounts, dynamo routing, and abrasion-resistant plate.
- Flat mount brakes
- Internal routing for brakes, shifters, and dropper post
- Top tube and down tube accessory mounts on frame hold ride essentials
- Compatible with 700c and 650b wheels and tires
- Frame fits tires up to 700c x 50 mm or 650b x 55 mm (27.5 x 2.1"")
- Waxwing fork fits tires up to 700c x 45mm or 650b x 56.5mm
- 12 x 100mm thru-axle front, 12 x 142mm thru-axle rear
Frame Size | 49 cm | 51 cm | 53 cm | 55 cm | 57 cm | 60 cm |
---|---|---|---|---|---|---|
Top Tube Effective | 493.0mm | 510.0mm | 530.0mm | 550.0mm | 570.0mm | 600.0mm |
Head Tube Angle | 68.5° | 69.5° | 69.5° | 69.5° | 69.5° | 69.5° |
Effective Seat Tube Angle | 76.0° | 75.0° | 74.0° | 73.0° | 73.0° | 73.0° |
BB Drop | 70.0mm | 70.0mm | 70.0mm | 70.0mm | 70.0mm | 70.0mm |
Head Tube Length | 90.0mm | 105.0mm | 130.0mm | 150.0mm | 180.0mm | 210.0mm |
Fork Length | 401.9mm | 401.9mm | 401.9mm | 401.9mm | 401.9mm | 401.9mm |
Fork Offset | 50.0mm | 50.0mm | 50.0mm | 50.0mm | 50.0mm | 50.0mm |
Rear Center | 440.0mm | 440.0mm | 440.0mm | 440.0mm | 440.0mm | 440.0mm |
Bottom Bracket Height (non-Sus only) | 283.0mm | 283.0mm | 283.0mm | 283.0mm | 283.0mm | 283.0mm |
Mechanical Trail | 79.4mm | 73.6mm | 73.6mm | 73.6mm | 73.6mm | 73.6mm |
Wheel Base | 1027.3mm | 1027.6mm | 1039.7mm | 1050.5mm | 1072.4mm | 1104.3mm |
Stack | 510.3mm | 528.2mm | 551.6mm | 570.4mm | 598.5mm | 626.6mm |
Reach | 365.8mm | 368.5mm | 371.8mm | 375.6mm | 387.0mm | 408.4mm |
Front Center | 597.1mm | 597.3mm | 609.3mm | 620.0mm | 641.8mm | 673.6mm |
Chainstay Length | 445.5mm | 445.5mm | 445.5mm | 445.5mm | 445.5mm | 445.5mm |
Seat Tube Length | 340.0mm | 380.0mm | 410.0mm | 450.0mm | 490.0mm | 520.0mm |
Max Seatpost Insertion Length | 200.0mm | 200.0mm | 200.0mm | 200.0mm | 200.0mm | 200.0mm |
Standover | 617.0mm | 652.0mm | 688.0mm | 724.0mm | 760.0mm | 807.0mm |
Size | Rider Height |
---|---|
49 cm | 142-150cm |
51 cm | 150-157cm |
53 cm | 157-168cm |
55 cm | 165-175cm |
57 cm | 173-183cm |
60 cm | 183-193cm |
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Specs
Frame | Aluminum |
---|---|
Fork | Waxwing Carbon (aluminum steerer) |
Rims | WTB ST i23, TCS 2.0, 28h, 700c |
Hubs | Shimano RS-470, 28h, centerlock |
Spokes | 14g Black |
Tires | Teravail Washburn 700x42 - Wire Bead |
Bottom Bracket | Shimano CUES, 68mm, BSA |
Crankset | Shimano CUES U6030 |
Chainrings | 42t |
Shifters | Shimano Cues 10/11-speed, U6030 |
Rear Derailleur | Shimano Cues 10/11, RD-U6000 |
Cassette/Freewheel | Shimano CUES LG300, 11–48t, 10-speed |
Chain | Shimano CUES LG500 LINKGLIDE |
Brakes | Shimano Cues, BR-U6030 |
Rotors | Shimano SM-RT54, 160mm centerlock |
Brake Levers | Shimano Cues 10/11-speed, U6030 |
Handlebars | Salsa Cowbell 3 |
Tape/Grips | Black Cork |
Stem | Salsa Guide Stem |
Headset | FSA NO.42/ACB |
Seatpost | Salsa Guide |
Saddle | Volt Medium Steel |
Pedals | Sold Separately |
* Subject to change without notice.
Part Numbers
Option | UPC | MPN | Store SKU |
---|---|---|---|
Teal Green / 49cm / 700c | 657993422335 | BK01167 | 210000123163 |
Teal Green / 51cm / 700c | 657993422472 | BK01168 | 210000123164 |
