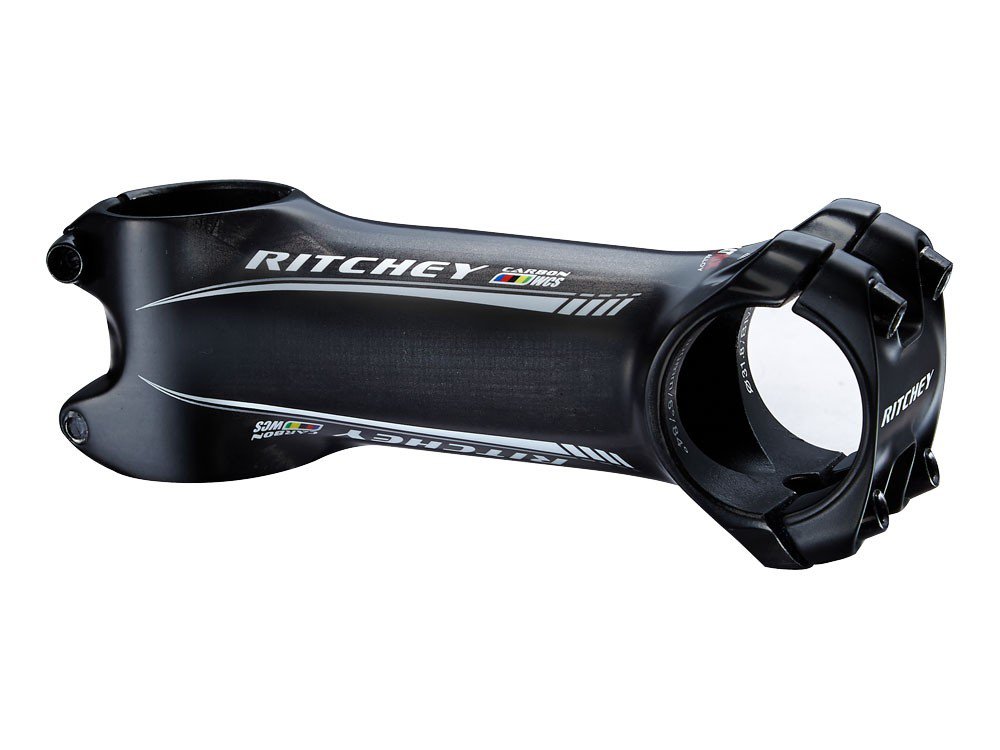

Ritchey WCS C-220 Carbon Matrix Stem

Ritchey WCS C-220 Carbon Matrix Stem
$159.95
Clamp Diameter:
31.8mm
Color:
Matte UD Carbon
Rise:
Steerer Diameter:
1-1/8-inch
Please select options
This item may not be shipped, however it can be purchased online and picked up in-store at your convenience.

Details

You really can have it all; Ritchey's WCS C-220 stem features exceptional stiffness and is quick and easy to install and remove thanks to a press-fit handlebar clamp interface and forward-facing hardware. The C-220 handlebar clamp design creates a more secure interface by wrapping a full 220 degrees over the handlebar. Bolt forces are aligned with the clamp so that the stem body ‘embraces’ the handlebar, which is less prone to damaging lightweight bars. This clamp design allows for a lighter faceplate and stem body with no sacrifice in strength or stiffness. The Carbon Matrix stem body is forged 7075 aluminum with a stiffness-enhancing carbon exoskeleton. Premium quality chromoly steel bolts are used throughout.

- Material: 3d forged 7075, carbon encased body
- 4 x 4mm coated CrMo steel forward-facing faceplate bolts
- 2 x 4mm coated CrMo steel offset steer tube clamp bolts
- 5Nm torque max on all hardware
- Compatible with all 31.8 bars
- Press-fit clamp design installs and removes like a standard stem
- Angle: 84/6 degree
- Steerer Height: 42mm
- Steerer diameter: 1-1/8"
- Faceplate Width: 42mm
- Matte UD Carbon Finish
- 126g (110mm)

Stem angle and length measurement

Stem angle is one of the factors that determines handlebar height. A listed angle of 0 degrees actually provides a rise that is dependent on your bike’s head angle (see image).

Stem length is measured along the side of the stem from the center of the steerer to the center of the handlebar clamp (see diagram). Keep in mind that as a stem provides more rise, its effective length decreases. In the example above, if the +17 degree stem measures 135mm, it actually extends 108mm parallel to the ground.

Part Numbers

Option UPC MPN Store SKU
31.8mm / Matte UD Carbon / 80mm / 6° / 1-1/8-inch 796941316576 31056117010 210000024846
31.8mm / Matte UD Carbon / 70mm / 6° / 1-1/8-inch 796941316569 31056117009 210000024845
