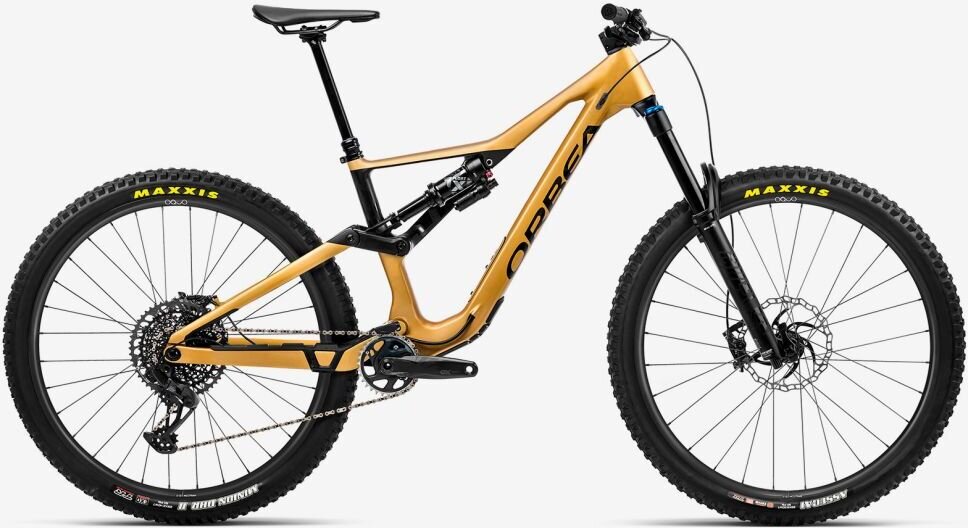

Orbea Rallon M10

Orbea Rallon M10
  • Color: Golden Sand/Black (Matt)
  • Color: Jade Green Carbon View (Gloss)/Stone Silver (Matt)
  • Color: Metallic Mulberry (Gloss)/Black (Matt)
$5,939.99
$6,599.00
Color:
Golden Sand/Black (Matt)
Size:
Large
Please select options Unavailable

Details

Rallon was forged on the racecourse and is the obvious choice of our EWS race team, but Rallon is always ready for fun outside of the tape and loves fast laps with friends, high-5's and near misses. Fearless, Rallon is up for hitting the biggest gaps in the park, smashing berms, and scorning braking bumps. Forget limits, forget distractions, just focus on fast.

Geometry

Sizes:
SIZE (MM)SMALLMEDIUMLARGEX-LARGE
1 - SEAT TUBE (C-T) 415 415 435 460
2 - TOP TUBE (EFF) 572 599 626 653
3 - HEAD TUBE 90 100 110 120
4 - CHAINSTAY 440 440 440 440
5 - BB HEIGHT* 350/343 350/343 350/343 350/343
6 - BB DROP* 28/35 28/35 28/35 28/35
7 - WHEELBASE 1202 1231 1260 1290
8 - HEAD ANGLE* 64.5°/64° 64.5°/64° 64.5°/64° 64.5°/64°
9 - SEAT ANGLE* 77.5°/77 77.5°/77 77.5°/77 77.5°/77
10 - STANDOVER 737 737 754 774
11 - REACH 435 460 485 510
12 - STACK 619 628 637 646
13 - FORK LENGTH 587.7 587.7 587.7 587.7
*High Position / Low Position
Sizes:
HEIGHT ( CM )HEIGHT ( IN )SIZE
150-170 59.1"-66.9" SMALL
160-180 63.0"-70.9" MEDIUM
170-190 66.9"-74.8" LARGE
180-200 70.9"-78.7" X-LARGE
Sizes:
SIZE (MM)CRANKSTEMHANDLEBARDROPPER
SEATPOST
SMALL 165 40 780 440/150
MEDIUM 165 40 780 440/150
LARGE 170 50 780 480/170
X-LARGE 170 50 780 550/200

Specs

Frame Orbea Monocoque Race Carbon. Advanced Dynamics 160mm suspension technology. 29" wheels.Concentric Boost 12x148 rear axle. Pure Enduro geometry. Internal cable routing. ISCG05
Fork Fox 38 Float Performance 170 Grip 3-Position QR15x110
Rear Shock Fox FLOAT X Performance 2-Position Evol LV custom tune 230x60mm
Wheels OQUO Mountain Control MC32TEAM
Tires Maxxis Assegai 2.50" WT FB 120 TPI 3C Maxx Terra EXO+ TR/ Maxxis Minion DHR II 2.40" WT FB 120 TPI 3C Maxx Terra Exo+ TR
Crankset SRAM GX Eagle Dub Lunar Boost 32T
Shifters SRAM GX Eagle Lunar
Rear Derailleur SRAM GX Eagle Lunar
Cassette/Freewheel SRAM XG-1275 Eagle 10-52T 12-Speed
Chain SRAM GX Eagle 12-Speed
Chainguide: e*thirteen CL52 30-36t black
Brakes Shimano XT M8120 Hydraulic Disc
Handlebars OC Mountain Control MC20 Alu SL, Rise20, Width 800
Stem OC Mountain Control MC20, 0º
Headset Acros Alloy 1-1/8 - 1-1/2" Integrated
Seatpost OC Mountain Control MC20, 31.6mm, Dropper
Seatpost Lever: Shimano SL-MT500 I-Spec EV
Saddle Fizik Taiga S-alloy rail
Pedals Sold separately
Accessories & Extras Accessories Containers
Tools: OC Rear lever (Hex 6 & valve core removal)+OC FLP Multitool MT-20, Hex 2, 3, 4, 5

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Golden Sand/Black (Matt) / Large 08434446183904 N26807LR 210000091262
