Details
NEVER THE SAME AGAIN
Just like triathlon is a competition of multiple disciplines, Ordu is an elegant blend of aerodynamics, weight, handling and ergonomics. Once you have experienced Ordu’s multiple strengths, it is impossible to feel confident with a lesser machine. For those who aim to be the fastest, most efficient and decorated athletes, Ordu is the future. You and triathlon will never be the same again.
PERFECT BALANCE
Historically, considering only the three design factors of aerodynamics, stiffness and weight rarely yeilds dramatic improvement. Big gains in one of the three areas always compromise one or both of the others.
The key to building the best triathlon bike is finding the balance of these targets, and identifying additional performance factors that allow the rider to increase efficiency.
AERODYNAMICS
It required more than 2,500 hours of calculations… Analyzing the frame, fork and cockpit assembly and identifying areas to refine and reduce aerodynamic resistance.
WEIGHT
We analyzed the areas where large amounts of material were being used for rigidity.
ERGONOMICS
Ordu is designed to fit the widest possible range of riders. The ergonomics are easily modified over a huge range with just a few adjustment points, easily adaptable for any rider or race regulations. It doesn’t matter if you’re very flexible or not…Ordu will meet your needs.
THE NEW ORDU IS FOR THE SERIOUS TRIATHLETE LOOKING TO UPGRADE AN EXISTING BIKE TO SOMETHING FASTER AND MORE ERGONOMIC WITH MORE INTEGRATION AND LOWER WEIGHT.
Ordu is also the choice of elite or professional road racers who need a UCI-legal time trial bike. Ordu is the racing platform of many Orbea-sponsored teams, and of course our Orbea Pro Triathletes, Fundacion Euskadi and Ceratizit - WNT Team riders.
FRAME SIZE | X-SMALL | SMALL / MEDIUM | MEDIUM / LARGE | X-LARGE |
---|---|---|---|---|
HEAD TUBE LENGTH (mm) | 59 | 96 | 96 | 149 |
CHAINSTAY LENGTH (ACTUAL) (mm) | 405 | 405 | 405 | 405 |
BB DROP (mm) | 75 | 75 | 75 | 75 |
WHEEL BASE (mm) | 971 | 1007 | 1007 | 1048 |
SEAT ANGLE (VIRTUAL) | 74-78º | 74-78º | 74-78º | 74-78º |
STANDOVER HEIGHT* (mm) | 746 | 781 | 781 | 831 |
BB - FRONT WHEEL AXLE (mm) | 578 | 613 | 613 | 654 |
TRAIL (mm) | 60 | 60 | 60 | 60 |
WIDTH (mm) | 380 | 380 | 380 | 380 |
STACK HIGH POSITION (mm) | 481 | 516 | 516 | 566 |
STACK LOW POSITION (mm) | 451 | 486 | 486 | 536 |
REACH (mm) | 641 | 665 | 665 | 689 |
STACK MAX (mm) | 605 | 640 | 690 | 740 |
FRONTPOST INSERTION MIN (mm) | 40 | 40 | 40 | 40 |
STACK MIN (W/O FP TRIMMING) (mm) | 588 | 595 | 645 | 696 |
STACK MIN (W/ FP TRIMMING) (mm) | 515 | 550 | 550 | 600 |
REACH MAX (BRIDGE POS. 1) (mm) | 481 | 505 | 505 | 529 |
REACH MIN (BRIDGE POS. 2) (mm) | 361 | 385 | 385 | 409 |
ELBOW RESTS MIN/MAX WIDTH (C-C) (mm) | 105-195 | 105-195 | 105-195 | 105-195 |
TILT** | 0-15º | 0-15º | 0-15º | 0-15º |
HEIGHT MAX (mm) | 782 | 817 | 857 | 906 |
SEATPOST INSERTION MIN (mm) | 100 | 100 | 110 | 110 |
HEIGHT MIN (RECOMMENDED) (mm) | - | 724 | 754 | 775 |
HEIGHT MIN (W/O SP TRIMMING) (mm) | 683 | 674 | 714 | 764 |
HEIGHT MIN (W/ SP TRIMMING) (mm) | 589 | 624 | 624 | 675 |
SETBACK TRAVEL (mm) | 100 | 100 | 100 | 100 |
FRAME SIZE | RIDER HEIGHT (CM) | RIDER HEIGHT (IN) |
---|---|---|
X-SMALL | < 170 | < 5'6" |
SMALL / MEDIUM | 170 - 180 | 5'6" - 5'10" |
MEDIUM / LARGE | 175 - 185 | 5'8" - 6'0" |
X-LARGE | > 185 | > 6'0" |
Specs
Pedals | Sold Separately |
---|---|
Fork | Orbea Ordu OMX ICR fork 2021, full carbon, 1" head tube, Thru axle 12x100m, thread M12x2P1, Speed release compatible dropout. UCI Legal. |
Frame | Orbea Ordu carbon OMX Disc, monocoque construction, HS 1" - 1 1/8" mini tapered, BB 386mm, powermeter compatible, Thru Axle 12x142mm, thread M12x2 P1, Speed release compatible dropout, Internal Cable Routing. |
Tires | Vittoria Corsa N.Ext G2.0 Foldable 700x28c |
Brakes | Shimano R9270 Hydraulic Disc |
Saddle | Fizik Argo Vento R5 size 140mm |
Wheels | Oquo Road Performance RP45TEAM, carbon Mini Hook rim, 45mm profile, Zipp ZR1 hub, Shimano HG freehub, 21mm internal width, Sapim CX-Sprint spokes, 700C |
Headset | FSA 1-1/8"-1" Integrated Aluminium Cup |
Crankset | Shimano 105 R7100 36x52t |
Seatpost | Orbea Ordu OMX, w/Micro tilt adjustment |
Shifters | Shimano R9180 |
Rear Derailleur | Shimano 105 Di2 R7150 |
Front Derailleur | Shimano 105 Di2 R7150 |
Chain | Shimano M7100 |
Handlebars | Orbea Ordu OMX |
Tape/Grips | Orbea Eva |
Accessories & Extras |
OC Aero Bottle RA10 (550ml) + Carbon Cage Kit RA10 OC Aero Toolbox TB01PP |
Cassette/Freewheel | Shimano 105 R7100 11-34t 12-Speed |
* Subject to change without notice.
Part Numbers
Option | UPC | MPN | Store SKU |
---|---|---|---|

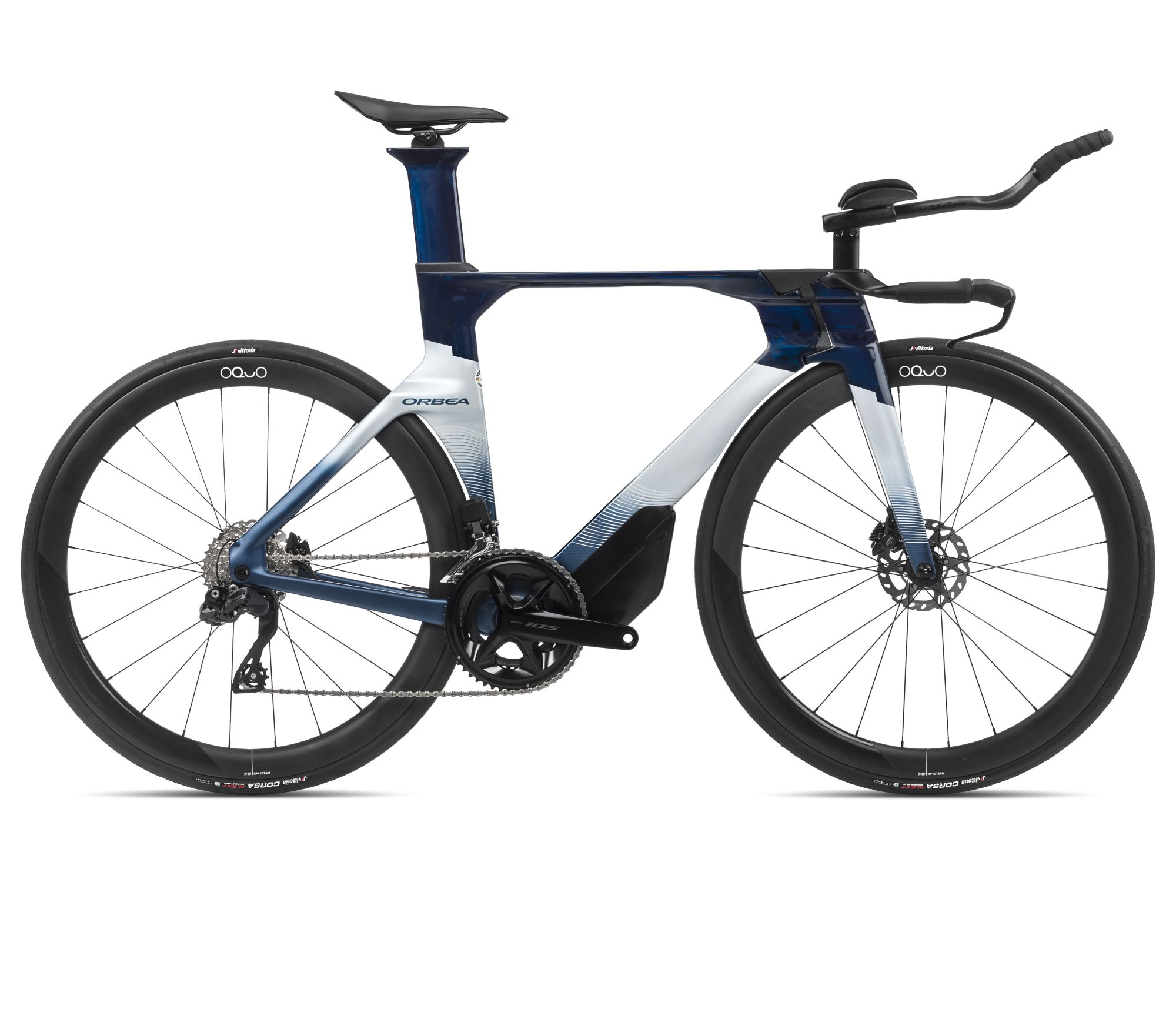

Blue Carbon View - Moondust Blue / 700c | 8434446522451 | R13505BY | 210000105381 |
Blue Carbon View - Moondust Blue / 700c | 8434446522451 | R13505BY | 210000105381 |
Carbon Raw - Wine Red Shades / 700c | 8434446522475 | R13507BX | 210000105378 |
Carbon Raw - Wine Red Shades / 700c | 8434446522475 | R13507BX | 210000105378 |
