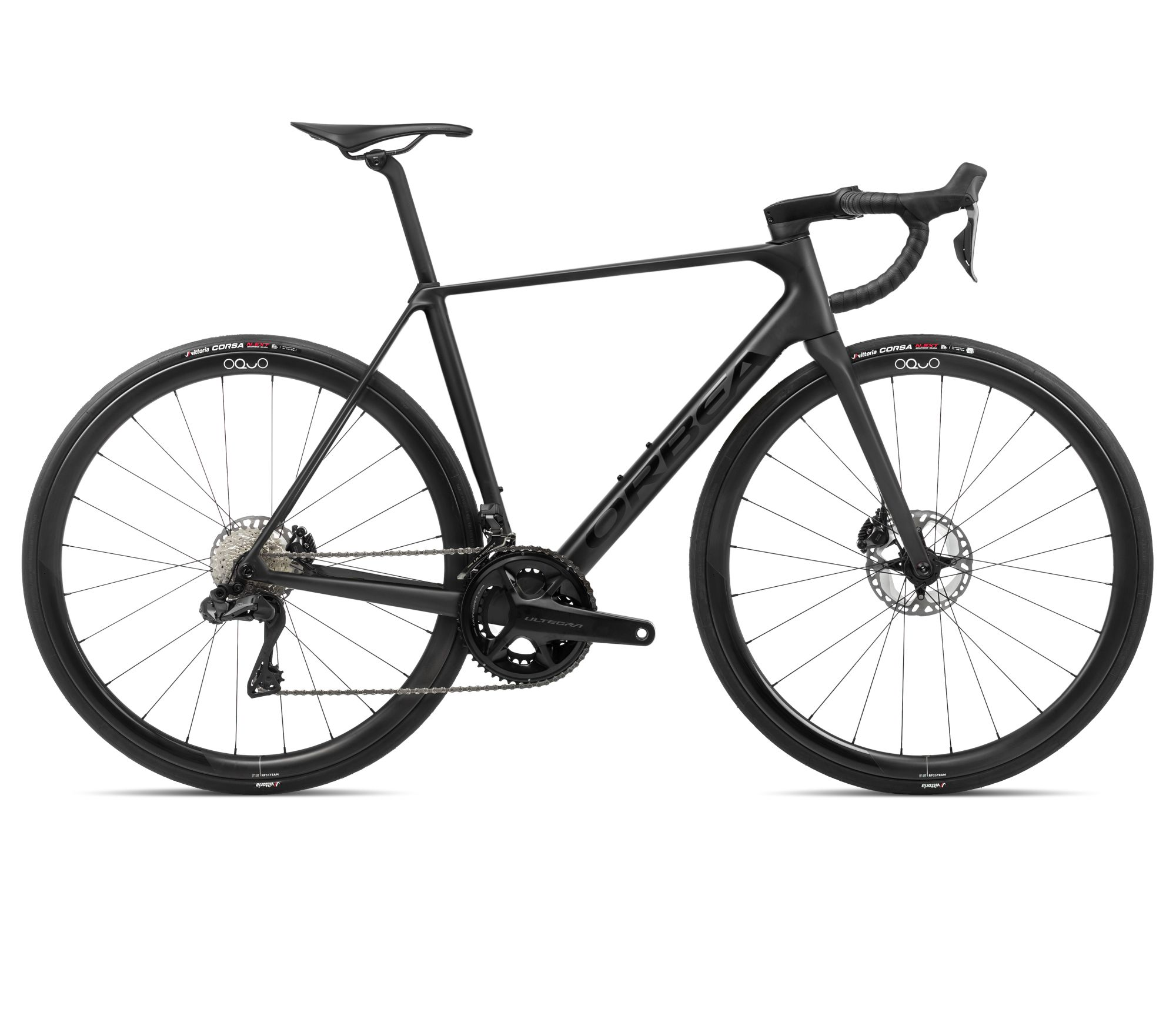

Orbea Orca M20iTeam

Orbea Orca M20iTeam
  • Color: Ivory White-Burgundy -Vulcano
  • Color: Slate Blue-Halo Silver
  • Color: Vulcano-Black - Black
  • Color: Wine Red - Titanium
$5,999.00
Color: Ivory White-Burgundy -Vulcano
Size: Select size
Wheel Size: 700c
Please select options Unavailable

Details

PRAISE THE LIGHT.

Orca isn’t just light. It is 6.7kg of climbing technology designed to change how you reach the top.

The feeling of a bike this light and efficient is unbeatable, and this instant acceleration, vibration absorption and responsive handling come from a frame which knows where it needs to be light and where it needs to be stiff. Welcome the ultimate climbing machine!

DOMINATE THE CLIMBS

Achieving Orca´s light weight required many marginal gains, focusing on the details and using the best materials across the range. Considering the bike as a package means working with component and wheel designers right from the start to optimize stiffness and weight.

RIGID IN ALL THE RIGHT PLACES

But having the lightest bike is worth nothing if it isn’t stiff and efficient. When we designed Orca, we started with a target rigidity to ensure that even the strongest climbers could be sure of efficient power transmission. Then we designed Orca to be as light as possible without compromising that number.

THE FEEL OF FREEDOM

There is indeed just something special about the feel of a lightweight bike. We love the instant acceleration when you stamp on the pedals and the responsive, agile handling as you carve through the turns.

NO TRADE-OFFS

Our clever frame design means that stiff doesn't have to be uncomfortable. Rounder frame sections help reduce vibrations, saving energy on longer rides and offering you an advantage on that final climb. Wider clearance allows for tires of up to 32mm- maximising traction and compliance.

PERFORMANCE DESIGN

Orca is built on our understanding of performance and design, reflecting our belief that bikes should look great and ride better. Orca’s minimal, timeless lines give it its distinctive style and cover some very modern technology.

Sizes:
FRAME SIZE47495153555760
SEAT TUBE (C-T)440 460480500520540570
TOP TUBE (EFF)510,3 522,7535,9548,5560,4576,1590
HEAD TUBE110,5 118,2134,6152,9173,1191,2218,3
CHAINSTAY408 408408408408408408
BB HEIGHT (25-622)268,5 268,5268,5270,5270,5270,5270,5
BB DROP72 727270707070
WHEELBASE971,8 975,4980981,2991,41001,91015,6
HEAD ANGLE71 71,572,272,87373,273,2
SEAT ANGLE74,5 7473,773,573,573,273,2
STANDOVER (25-622)736,5 748,5767,5788,5808,5826,5852,5
REACH370 375380385391398404
STACK506 515533552572590616
FORK LENGTH365 365365365365365365
RAKE48 484843434343
TRAIL66,0 62,858,459,958,757,457,4
Sizes:
FRAME SIZERIDER HEIGHT (CM)RIDER HEIGHT (IN)
47155 - 160 5'1" - 5'3"
49160 - 166 5'3" - 5'5"
51167 - 172 5'5" - 5'7"
53173 - 179 5'8" - 5'10"
55180 - 185 5'10" - 6'0"
57186 - 191 6'1" - 6'3"
60192 - 207 6'3" - 6'9"

Specs

Pedals Sold Separately
Fork Orbea Orca OMR ICR 2024, full carbon, 1-1/8" - 1,5" tappered head tube compatible, Thru axle 12x100mm, thread M12x2 P1.
Stem OC Road Performance RP10, -8º
Chain Shimano M8100
Frame Orbea Orca carbon OMR 2024, monocoque construction, HS 1,5", BB 386mm, powermeter compatible, Rear Thru Axle 12x142mm, thread M12x2 P1, internal cable routing.
Tires Vittoria Corsa N.Ext G2.0 Foldable 700x28c
Brakes Shimano R8170 Hydraulic Disc
Saddle Fizik Vento Antares R7 Alloy Rail 140mm
Wheels OQUO Road Performance RP35 TEAM Carbon
Headset FSA 1-1/2" Integrated Aluminium Cup
Crankset Shimano Ultegra R8100 34x50t
Seatpost OC Performance XP10-S Carbon, 27.2mm, Setback 20
Shifters Shimano ST-8170
Handlebars OC Road Performance RP21 Alu SL, Reach 80, Drop 125
Tape/Grips Orbea Anti-Slippery/Shock Proof
Rear Derailleur Shimano Ultegra Di2 R8150
Front Derailleur Shimano Ultegra Di2 R8150
Cassette/Freewheel Shimano Ultegra R8100 11-30t 12-Speed

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Ivory White-Burgundy -Vulcano / 55cm / 700c 8434446493775 R11455AJ 210000104330
Vulcano-Black - Black / 51cm / 700c 8434446493720 R11451AK 210000104335
Vulcano-Black - Black / 55cm / 700c 8434446493782 R11455AK 210000104337
Ivory White-Burgundy -Vulcano / 53cm / 700c 8434446493744 R11453AJ 210000104329
Vulcano-Black - Black / 49cm / 700c 8434446493690 R11449AK 210000104334
Slate Blue-Halo Silver / 47cm / 700c 8434446493676 R11447AL 210000104340
Vulcano-Black - Black / 53cm / 700c 8434446493751 R11453AK 210000104336
Ivory White-Burgundy -Vulcano / 49cm / 700c 8434446493683 R11449AJ 210000104327
Ivory White-Burgundy -Vulcano / 51cm / 700c 8434446493713 R11451AJ 210000104328
