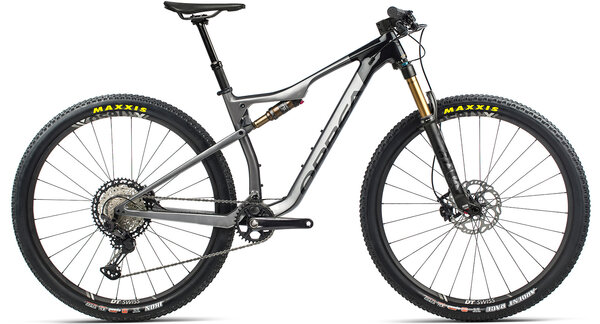

Orbea Oiz M10 TR

Orbea Oiz M10 TR
  • Color: Coral/Black
  • Color: Anthracite Glitter/Black
  • Color: Lichen Green/Black
$5,999.00
Color:
Anthracite Glitter/Black
Please select options

Details

AIM FOR THE TOP

Oiz is familiar with the hard work it takes to reach summits, leaderboards, and podium steps. We don't need to fabricate a pedigree for this phenomenon - two world championships prove Oiz is a thoroughbred. Oiz and serious cross-country are synonymous, its presence on the World Cup is undeniable. Is the lightest, stiffest and most efficient machine available whether you pin on a number or take it up to the highest peak on your afternoon ride. Oiz has what you need to get there - there is no better weapon to aim for the top.

OMX - 1740g
- The new OMX frame is lighter, a bit stiffer, and more nimble with 5mm shorter stays. If what you're after is an absolute XC Race experience, OMX will deliver.

WORLD CUP GEOMETRY
- Super-short rear end for explosive acceleration, maneuverability, and steep climb traction.

FLAT MOUNT
- The lowest profile brake mount provides the cleanest, stiffest and lightest caliper integration available.

FIBERLINK
- In the quest for stiffness and clean lines, we developed the long-fiber injected Fiberlink. The perfect blend of low weight and impressive rigidity, Fiberlink integrates seamlessly with the shapes of Oiz and the seat tube.

INSIDE LINE
- It's the quickest way around the competition - and the optimal route for control cables racing to your fingertips. The proprietary rear shock lockout is completely invisible, hiding from mud and staying out of your way as you grab a water bottle. Controls are accessible and easy to use, creating the smoothest and sexiest shock mounting on the market. It's a small detail, but when your bike is optimized, customized, and weaponized, obsession over details can't be trivialized.

TWO BOTTLES
- One of the simplest features of the new Oiz was one of the most complex to accomplish - the MD, LG, and XL frames are all equipped with two bottle mounts inside the front triangle. The additional room made available by the Inside Line cable routing puts extra water at your fingertips instead of in your pocket or on your back.

SQUIDLOCK REMOTE LOCK
- A three-position lockout lever that is compact, lightweight, and integrates with your dropper post lever to allow you to use just one clamp, for both assemblies.

Geometry

Sizes:
SIZE (MM)SMALLMEDIUMLARGEX-LARGE
1 - SEAT TUBE (C-T) 405 432 470 520
2 - TOP TUBE (EFF) 567 596 619 643
3 - HEAD TUBE 90 95 105 120
4 - CHAINSTAY 435 435 435 435
5 - BB HEIGHT 334 334 334 334
6 - BB DROP 40 40 40 40
7 - WHEELBASE 1101 1131 1155 1181
8 - HEAD ANGLE 68° 68° 68° 68°
9 - SEAT ANGLE 74° 74° 74° 74°
10 - STANDOVER 724 739 749 756
11 - REACH 387 425 446 466
12 - STACK 593 598 608 622
13 - FORK LENGTH 524 524 524 524
RAKE 44 44 44 44
Sizes:
HEIGHT ( CM )HEIGHT ( IN )SIZE
155-165 61.1"-66.9" SMALL
165-180 65.0"-70.9" MEDIUM
178-190 70.1"-74.8" LARGE
185-198 72.8"-78.0" X-LARGE

Sizes:
SIZE
(MM)
CRANKSTEMHANDLEBARDROPPER
SEATPOST
SMALL 170 60 760 390/125
MEDIUM 175 75 760 390/125
LARGE 175 75 760 390/125
X-LARGE 175 90 760 390/125

Specs

Frame Orbea Oiz Carbon OMR AlloyLink Boost PF Taper UFO2 I-Line
Fork Fox 34 Float SC Factory 120 FIT4 Remote-Adj Push-Unlock QR15x110
Rear Shock Fox i-line DPS Factory 120mm Remote Push-Unlock Evol Kashima custom tune190x45mm
Wheels DT Swiss XR-1650 Spline 25c TLR CL, Star Ratchet, Boost
Tires Maxxis Ardent 2.2" FB Dual Exo TR/ Maxxis Ikon 2.20" FB 120 TPI 3C Exo TR
Crankset Shimano XT M8100 32T
Shifters Shimano XT M8100 I-Spec EV
Rear Derailleur Shimano XT M8100 SGS Shadow Plus
Cassette/Freewheel Shimano CS-M8100 10-51t 12-Speed
Chain Shimano M7100
Brakes Shimano XT M8100 Hydraulic Disc
Stem OC3 31.8mm interface -8°
Headset Acros Alloy 1-1/8 - 1-1/2" Integrated
Seatpost OC2 Dropper 31.6mm 125mm travel
Saddle Fizik Taiga S-alloy rail
Pedals Sold separately
Accessories & Extras OC Squidlock 3-position

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Anthracite Glitter/Black / Small 08434446912443 M23816LD 210000083592
Anthracite Glitter/Black / Medium 08434446912474 M23817LD 210000083593
Anthracite Glitter/Black / Large 08434446912504 M23819LD 210000083594
Anthracite Glitter/Black / X-Large 08434446912535 M23821LD 210000083595
