Orbea Oiz H10

Orbea Oiz H10
  • Color: Apricot Orange/Limestone Beige (Matt)
  • Color: Moondust Blue/Leo Orange (Matt)
  • Color: White Chic/Shadow Coral (Gloss)
$3,599.99
$3,999.00
Please select options Unavailable

Details

Take control. Don't accept compromises. Oiz isn't down-country or trail; this is a 120mm XC race machine that looks as good as it rides. Modern geometry and clever suspension, designed from the start around 120mm, bring extra fun to every ride without compromising weight or efficiency. Simply put, Oiz is the fastest XC bike to leave our factory in over 180 years.

120mm of Uncompromised Travel
Historically choosing between 100mm and 120mm required a compromise; the control of 120mm or the weight and efficiency of 100mm. Oiz refuses to accept that compromise, designed from the start around longer travel but lighter and more efficient than ever.

SIC System
Our SIC system routes the cables along the best path through the headset, through internal guides and invisibly from the front to rear triangle via our Cable Pass.

I-line
Our patented I-line is simply the sleekest, most integrated shock lock-out on the market.

You Can't Beat Simple
Removing anything which is superfluous and only adding features which enhance the ride means that at 1740g Oiz is one of the lightest XC frames out there. Light weight is key for a fast XC bike and relentlessly pursuing the simplest solutions means Oiz doesn't need compromise anywhere else to achieve this.

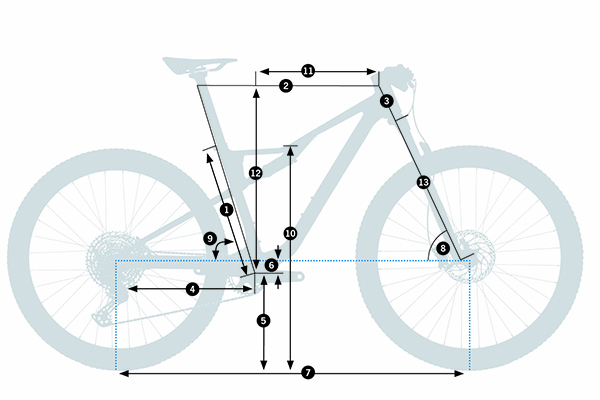

Geometry

Sizes:
SIZE (MM)SMALLMEDIUMLARGEX-LARGE
1 - SEAT TUBE (C-T) 410 432 460 510
2 - TOP TUBE (EFF) 568 594 619 645
3 - HEAD TUBE 90 95 105 115
4 - CHAINSTAY 436 436 436 436
5 - BB HEIGHT 333 333 333 333
6 - BB DROP 42 42 42 42
7 - WHEELBASE 1142 1169 1195 1223
8 - HEAD ANGLE 67° 67° 67° 67°
9 - SEAT ANGLE 76.5° 76.5° 76.5° 76.5°
10 - STANDOVER 729 743 746 743
11 - REACH 425 450 472 496
12 - STACK 596 600 610 619
13 - FORK LENGTH 531 531 531 531
RAKE 44 44 44 44
Sizes:
HEIGHT ( CM )HEIGHT ( IN )SIZE
155-170 61.1"-66.9" SMALL
165-180 65.0"-70.9" MEDIUM
178-190 70.1"-74.8" LARGE
185-198 72.8"-78.0" X-LARGE

Sizes:
SIZE
(MM)
CRANKSTEMHANDLEBAR
SMALL 170 60 740
MEDIUM 175 70 740
LARGE 175 70 740
X-LARGE 175 90 740

Specs

Frame Orbea Oiz Hydro High Polished, Alloy link, Boost, BSA, SIC, UFO, I-Line shock
Fork Fox 34 Float SC Performance 120 Grip Remote Push-Unlock QR15x110
Rear Shock Fox i-line DPS Performance 120mm Remote Push-Unlock Evol custom tune190x45mm
Wheels Race Face AR 30c Tubeless Ready
Tires Maxxis Forekaster 2.35" FB 120 TPI Dual Exo
Crankset Shimano XT M8100 32t
Shifters Shimano XT M8100 I-Spec EV
Rear Derailleur Shimano XT M8100 SGS Shadow Plus
Cassette/Freewheel Shimano CS-M7100 10-51T 12-Speed
Chain Shimano M6100
Brakes Shimano M6100 Hydraulic Disc
Handlebars Alloy, 31.8mm, Flat, 740mm, Sweep 9
Stem OC Mountain Performance MP21, -6º
Headset Alloy 1-1/2", Black Oxidated Bearing
Seatpost OC Mountain Control MC20, 31.6mm, Dropper
Saddle Selle Italia Model X FecAlloy Rail 145x248mm
Pedals Sold separately
Accessories & Extras Remote Lockout: OC Squidlock MP20 Remote, Dropper, Suspension 3 Pos

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Apricot Orange/Limestone Beige (Matt) / Small 08434446281488 N23403N4 210000090854
Apricot Orange/Limestone Beige (Matt) / Medium 08434446281587 N23405N4 210000090855
Apricot Orange/Limestone Beige (Matt) / Large 08434446281617 N23407N4 210000090856
Apricot Orange/Limestone Beige (Matt) / X-Large 08434446281648 N23409N4 210000090857
White Chic/Shadow Coral (Gloss) / Small 08434446281495 N23403N5 210000090858
