Details
Performance gains can be found everywhere and obsession is part of the game. How far is too far? For as long as we have had goals, competition and a creative spirit, we have pushed ourselves to win. Once victory is tasted, it becomes an obsession to be the best. You feel it in your heart, lungs and legs – you can sense it in our bikes. Only by sweating the smallest details and pushing past what seems possible can we achieve our ultimate goals.
Spirit Fork
A rigid fork isn't for everyone, but it might be perfect for you and that's enough for us – in these cases a carbon fork tuned specifically for your Alma isn't just "nice," it becomes essential. The Spirit fork is compatible with just about any tapered headtube hardtail and is available through the MyO program… so pick any of a dozen colors in hundreds of color combinations to match your trusty rig.
ICR
Internal Cable Routing is carefully guided along the best path with no rub or rattle, and is optimized for both traditional and electronic shifting systems.
Dynamic Structure
The large majority of torsional and lateral loads are handled by the lower spine of the frame. The headtube, downtube and chainstays resist twisting and transmit power to the rear wheel. There is no doubt about it, resistance to flex in the bottom of the frame translates directly to more watts to the wheel and a sensation that power transfer is instantaneous.
OC Cockpit
The Orbea XC Family sports an all-new integrated look with a completely unique OC headset/spacer/stem design. The system includes an optional computer mount that is compatible with all major brands using standard adapters. OC component collaboration is a detail that completes the high-end feel of our modern XC bikes.
Small | Medium | Large | X-Large | |
---|---|---|---|---|
1 - SEAT TUBE (C-T) (mm) | 400 | 445 | 483 | 533 |
2 - TOP TUBE (EFF) (mm) | 562 | 596 | 620 | 650 |
3 - HEAD TUBE (mm) | 100 | 110 | 120 | 135 |
4 - CHAINSTAY (mm) | 435 | 435 | 435 | 435 |
5 - BB HEIGHT (mm) | 309 | 309 | 309 | 309 |
6 - BB DROP (mm) | 61 | 61 | 61 | 61 |
7 - WHEELBASE (mm) | 1092 | 1127 | 1152 | 1184 |
8 - HEAD ANGLE | 68º | 68º | 68º | 68º |
9 - SEAT ANGLE | 74.5º | 74.5º | 74.5º | 74.5º |
10 - STANDOVER (mm) | 721 | 735 | 791 | 829 |
11 - REACH (mm) | 395 | 426 | 448 | 474 |
12 - STACK (mm) | 602 | 612 | 621 | 635 |
13 - FORK LENGTH (mm) | 501.6 | 501.6 | 501.6 | 501.6 |
RAKE (mm) | 44 | 44 | 44 | 44 |
SIZE | CRANK | STEM | HANDLEBAR |
---|---|---|---|
Small | 170 | 70 | 740 |
Medium | 175 | 70 | 740 |
Large | 175 | 90 | 740 |
X-Large | 175 | 100 | 740 |
HEIGHT ( CM ) | HEIGHT ( IN ) | SIZE |
---|---|---|
155-170 | 61.1"-66.9" | Small |
165-180 | 65.0"-70.9" | Medium |
178-190 | 70.1"-74.8" | Large |
185-198 | 72.8"-78.0" | X-Large |
Due to supply-chain issues, Specs are subject to change without notice.
Specs

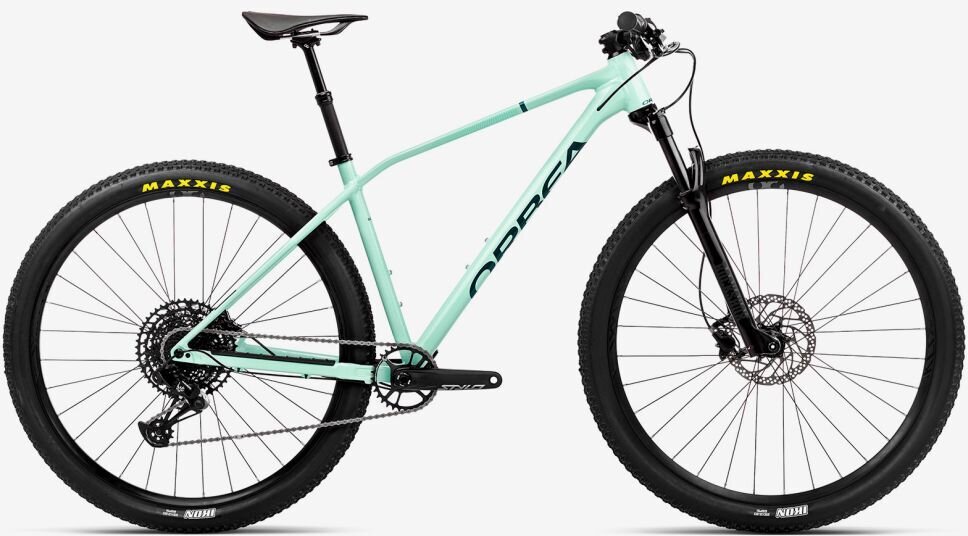

Frame | Orbea Alma Hydro Alloy, Boost 12x148, BSA BB, Internal cable routing |
---|---|
Fork | RockShox Judy Silver TK Remote Solo Air 100 QR15x110 Boost |
Wheels | Alloy, Tubeless, 25c, 32H |
Tires | Maxxis Ikon 2.20" FB 60 TPI Dual |
Crankset | SRAM Stylo 6K Eagle Dub Boost 32t |
Shifters | SRAM NX Eagle |
Rear Derailleur | SRAM NX Eagle |
Cassette/Freewheel | SRAM PG-1230 Eagle 11-50t 12-Speed |
Chain | SRAM NX Eagle 12-Speed |
Brakes | Shimano MT201 Hydraulic Disc |
Handlebars | Alloy, 31.8mm, Flat, 740mm, Sweep 9 |
Stem | Alloy forged, -7º |
Headset | Acros Alloy 1-1/8 - 1-1/2" Integrated |
Seatpost | OC Mountain Control MC20, 27.2mm, Dropper, Travel 80mm |
Saddle | Selle Italia Model X FecAlloy Rail 145x248mm |
Pedals | Sold separately |
Accessories & Extras |
Seatpost Lever: OC Squidlock MP20-D Dropper Remote Remote Lockout: Rock Shox PopLoc |
* Subject to change without notice.
Part Numbers
Option | UPC | MPN | Store SKU |
---|---|---|---|
Ice Green/Ocean (Gloss) / Medium | 08434446276835 | N21618N6 | 210000090624 |
Metallic Dark Red/Chic White (Gloss) / Small | 08434446276811 | N21616N8 | 210000090631 |
Metallic Dark Red/Chic White (Gloss) / Large | 08434446276934 | N21619N8 | 210000090633 |
Metallic Dark Red/Chic White (Gloss) / X-Large | 08434446277023 | N21621N8 | 210000090634 |
Taupe Brown (Matt)/Mango (Gloss) / Large | 08434446276910 | N21619N7 | 210000090629 |
