Details

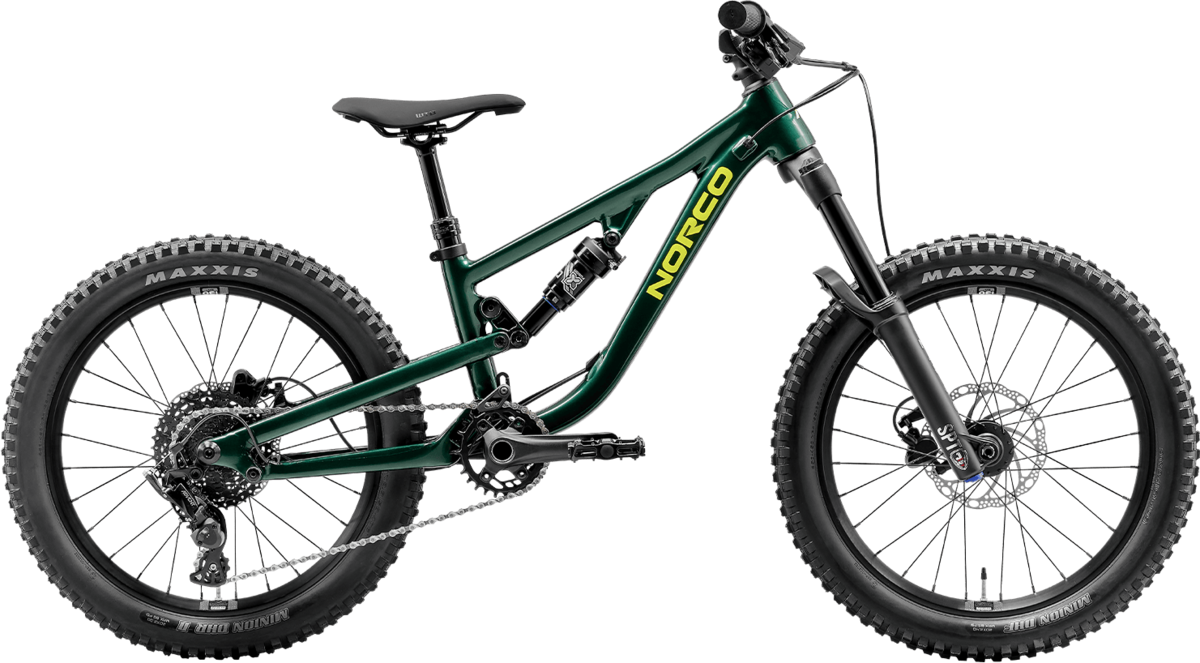

The Fluid FS 20 features progressive handling, low standover, youth-tuned suspension and a dropper that is optimized for 7-10-year-old riders below 90 pounds and roughly 3'8" - 4'3".
The Fluid FS 20 is an aggressive trail bike designed to tackle demanding trails.
The quality and build reflect everything we put into our full-size bikes, so you know the new Fluid FS Youth is up for every trail they are, and its quality parts will keep it out of the shop.
Details
- Holistic?design for real, uncompromised?performance.
- Suspension components built for young riders.
- Designed to fit small and perform big.
- Adult quality and durability, but built to fit.
Ripper Ready
The Fluid FS Youth’s progressive design provides the features and ride quality of our best adult bikes in a pint-sized package.
Standover has been maximized, suspension tunes optimized and frame geometry honed to bring the distinct Norco ride to every 20 and 24-inch model.
Detailed Tune
Suspension components built for your riders.
Smaller riders require less spring force in their suspension?components and dropper posts. Less spring force needs less damping, so the suspension and droppers move properly under riders below 90?pounds.
Designed to fit small, and perform big.
Low BB heights,?generous standover?clearance and a specially tuned linkage give young riders the same level of control and?suspension performance as our adult bikes.
All the quality and durability of adult parts, but built to fit.
Youth-specific touch points, sized?to provide ample grip and support for smaller bodies, don’t sacrifice the performance and?durability that dedicated riders need.
NO OTHER WAY LIMITED LIFETIME WARRANTY
Fluid’s durable frame design, hardware and component decisions have been made specifically to keep the Sight on the trail for longer. Accidents can happen, and when they do, our No Other Way Limited Lifetime Guarantee is our promise to get you back on the trail as soon as possible.
WHEEL SIZE
Available in 24” and 20”
| Wheel Size | 20" |
|---|---|
| Travel (mm front/mm rear) | 120/100 |
| Reach (mm) | 320 |
| Stack (mm) | 443 |
| Head Tube Angle | 64° |
| Fork Offset (mm) | 410 |
| Seat Tube Length (mm) | 255 |
| Effective Seat Tube Angle | 75° |
| Rear Centre Length (mm) | 355 |
| Bottom Bracket Rise/Drop (mm) | 10 |
| Bottom Bracket Height (mm) | 270 |
| Horizontal Top Tube (mm) | 439 |
| Wheelbase (mm) | 940 |
| Standover (mm) | 500 |
| Head Tube Length (mm) | 90 |
| Trail (mm) | 83 |
| Recommended Seatpost Drop (mm) | 80 |
| Maximum Post Insertion (mm) | 130 |
| Stem Length (mm) | 35 |
| Crank Length (mm) | 140 |
| Tire Size | 2.35" - 2.6" |
| Rider Height | 3'8" - 4'3" |
Specs
| Frame | 6061 Alloy, 120mm Travel, UDH, Ride Aligned™ |
|---|---|
| Fork | Manitou JUNIT Sport 20", 120mm Travel, 40mm Offset, alloy stanchion |
| Rear Shock | X-Fusion 02 Pro R, 170x30mm Standard, A-Tune Soft |
| Rims | WTB TCS 2.0, 27mm ID, 28H |
| Hubs |
Front: Formula DC-511, 15x110mm Boost, 28h, 6-bolt Raer: Formula DC-3248,12x148mm Boost, HG, 28h, 6-bolt |
| Tires |
Front: Maxxis Minion DHF, EXO, 20"x2.4", Folding Rear: Maxxis Minion DHR II, EXO, 20" x 2.3", Folding |
| Bottom Bracket | Prowheel Cartridge BB |
| Crankset | Prowheel Junior Alloy, 28T, 127mm |
| Shifters | microSHIFT Advent, 9spd |
| Rear Derailleur | microSHIFT Advent, 9spd, Short Cage Clutch |
| Cassette/Freewheel | microSHIFT Advent, 11-38T, 9spd |
| Chain | KMC X9, 9spd |
| Brakes | Tektro HD-J285, 2-P, Resin Pads, 2 finger lever blade |
| Rotors | Tektro TR160-22, 160mm, 6-bolt |
| Brake Levers | Tektro HD-J285 |
| Handlebars | Norco 6061 Alloy DB , 660mm, 20mm rise |
| Tape/Grips | Norco Youth Lockon, 115mm Length |
| Stem | Norco 6061, 35mm Length, 31.8mm Clamp |
| Headset | Tapered 1-1/8"- 1.5",(ZS44/28.6 | ZS56/40) |
| Seatpost | TranzX YSP18BKL, 31.6mm, 100mm, Kids Tune |
| Saddle | WTB Solano Med, 142x240 mm, Steel Rails |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Dark Metallic Green / 20-inch | 058817752704 | 1230116050 | 210000131122 |
