Details
Based on a similar platform as the popular Steelhead road/ gravel tandem, the Metolius utilizes the most powerful Bosch Performance pedal-assist motor integrated with an electronic shifting Rohloff internally geared hub for the ultimate riding experience. Ride farther with more comfort and less effort.
-Optimized for 700c wheels and 32 - 45mm tires
-Exclusive super-strength zonally-butted cro-moly tubing
-Tapered head tube with Co-Motion 1.5” TA carbon fork
-Powerful hydraulic disc brakes and 203mm rotors
-Front/ Rear rack + fender mounts
-Dual Gates Carbon Drive
-Bosch mid-drive with 85Nm max torque
-Four levels of assistance from 60% Eco to 340% Turbo
-Dual batteries = twice the range
-Rohloff Speedhub with smooth electronic shifting
-Electronic-shift integration designed for e-bike use
-Class III e-bike with 28mph cut-off

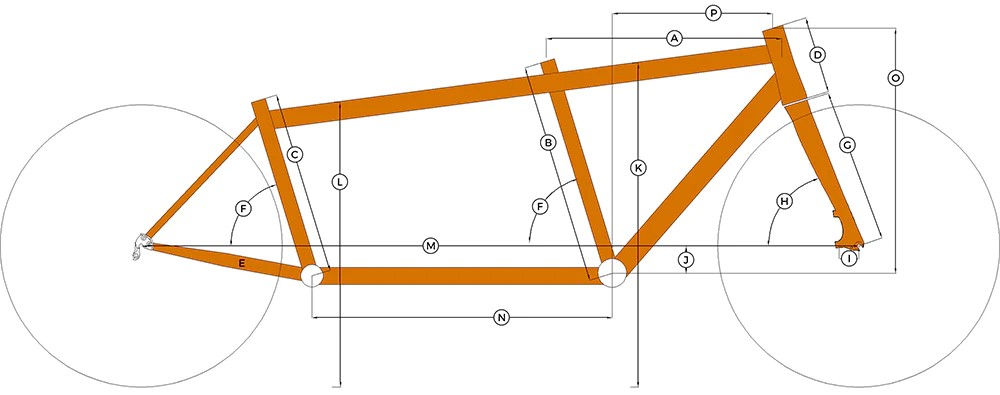

Frame Size |
---|
A - Captain Top Tube (cm) |
B - Captain Seat Tube (cm) |
C - Stoker Seat Tube (cm) |
D - Head Tube (mm) |
E - Chainstay (cm) |
F - Seat Tube Angle |
G - Fork Span (mm) |
H - Head Tube Angle |
I - Fork Rake (mm) |
J - BB Drop (mm) |
K - Capt. Standover (cm) |
L - Stoker Standover (cm) |
M - Wheelbase (cm) |
N - Boom Tube (cm) |
O - Stack (mm) |
P - Reach (mm) |
Small | Medium | Large | Large/Small |
---|---|---|---|
54.5 | 56.5 | 58.5 | 59 |
52 | 54 | 56 | 56 |
42 | 44 | 46 | 42 |
145 | 165 | 185 | 205 |
43.6 | 43.6 | 43.6 | 43.6 |
74° | 73° | 73° | 73° |
396 | 396 | 396 | 396 |
71° | 71° | 71° | 71° |
55 | 55 | 55 | 55 |
72 | 72 | 72 | 72 |
76.9 | 78.0 | 80.5 | 80.6 |
66.9 | 68.2 | 70.7 | 67.4 |
178.2 | 179.1 | 181.2 | 183.3 |
74.1 | 74.1 | 74.1 | 74.1 |
570 | 589 | 608 | 627 |
382 | 384 | 401 | 399 |
Specs
Frame | Exclusive super-strength zonally-butted cro-moly e-tandem frame tubing |
---|---|
Fork | Co-Motion Boost TA tapered carbon fork |
Headset | Cane Creek 110 Tapered |
Rims/Wheels | Rohloff + Co-Motion hubs/ Velocity 700c Rims |
Tires | Schwalbe e-bike tires 700x37mm |
Shifters | Electronic Shifting 14-speed Rohloff Speedhub designed for e-bike integration |
Brakes | Shimano XT 4-piston Hydro Brakes with 203mm Disc |
Saddle | Selle Italia Nekkar & Lady Flow |
Seat Post | Co-Motion 31.6mm |
Motor | Bosch Performance Line Speed |
Display | Bosch Kiox On-board Computer + Display |
Batteries | Dual Bosch Powerpack 500wh |
Drivetrain | Dual Gates Carbon Drive Belts |
Cockpit | FSA V-Drive and Co-Motion stoker bar / FSA SL-K and Co-Motion adj. stoker stem |
* Subject to change without notice.
Part Numbers
Option | MPN | Store SKU |
---|---|---|
Small | CMTMS | 210000095098 |
